WIFI+GPS+4G LTE Combo Antenna | IoT antenna
- Connectors and length customization
- Frequency band customization
- Regarding size customization
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
Share to:
Product Overview

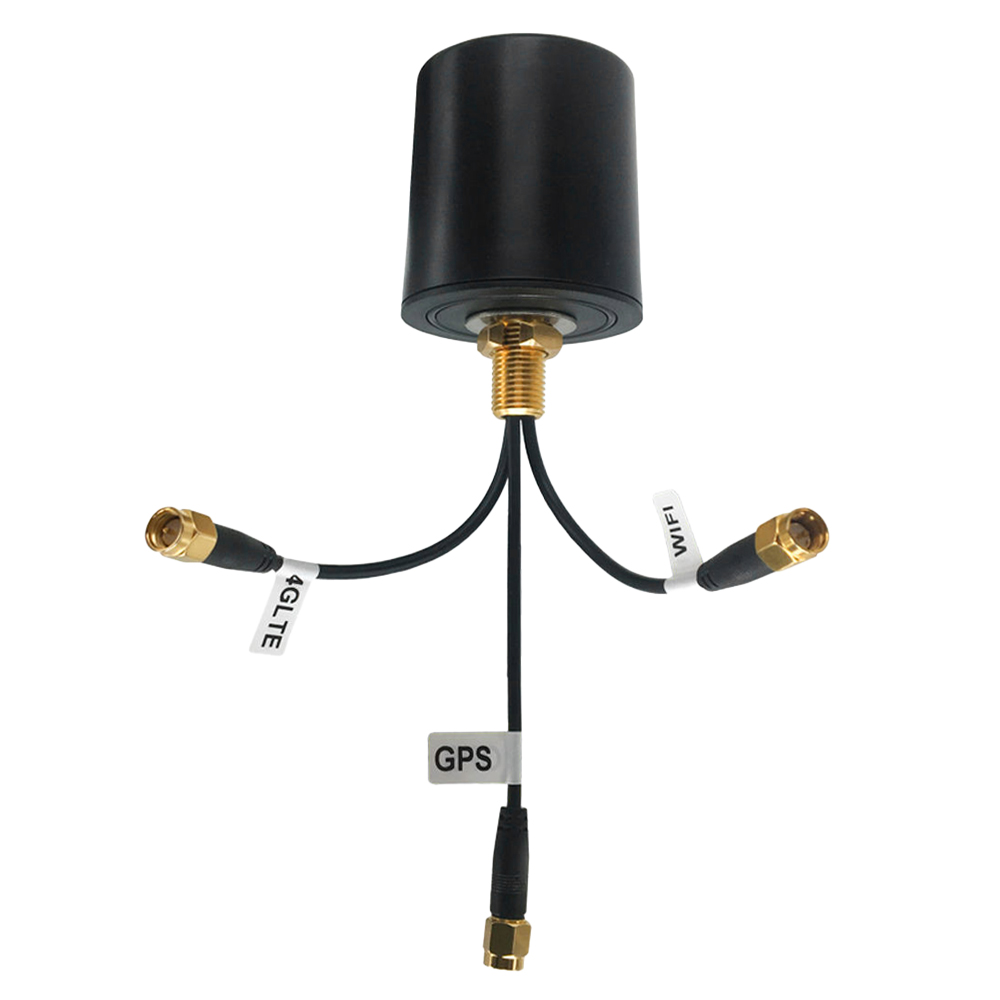

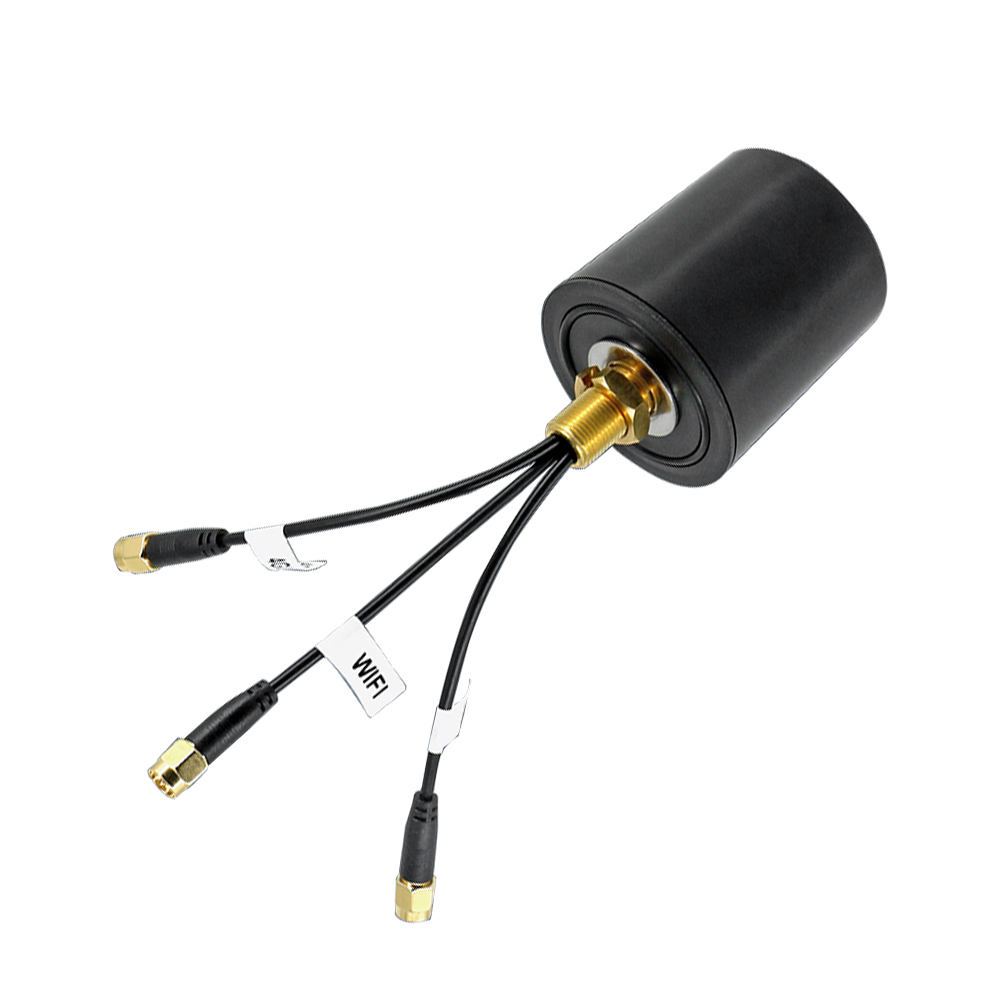

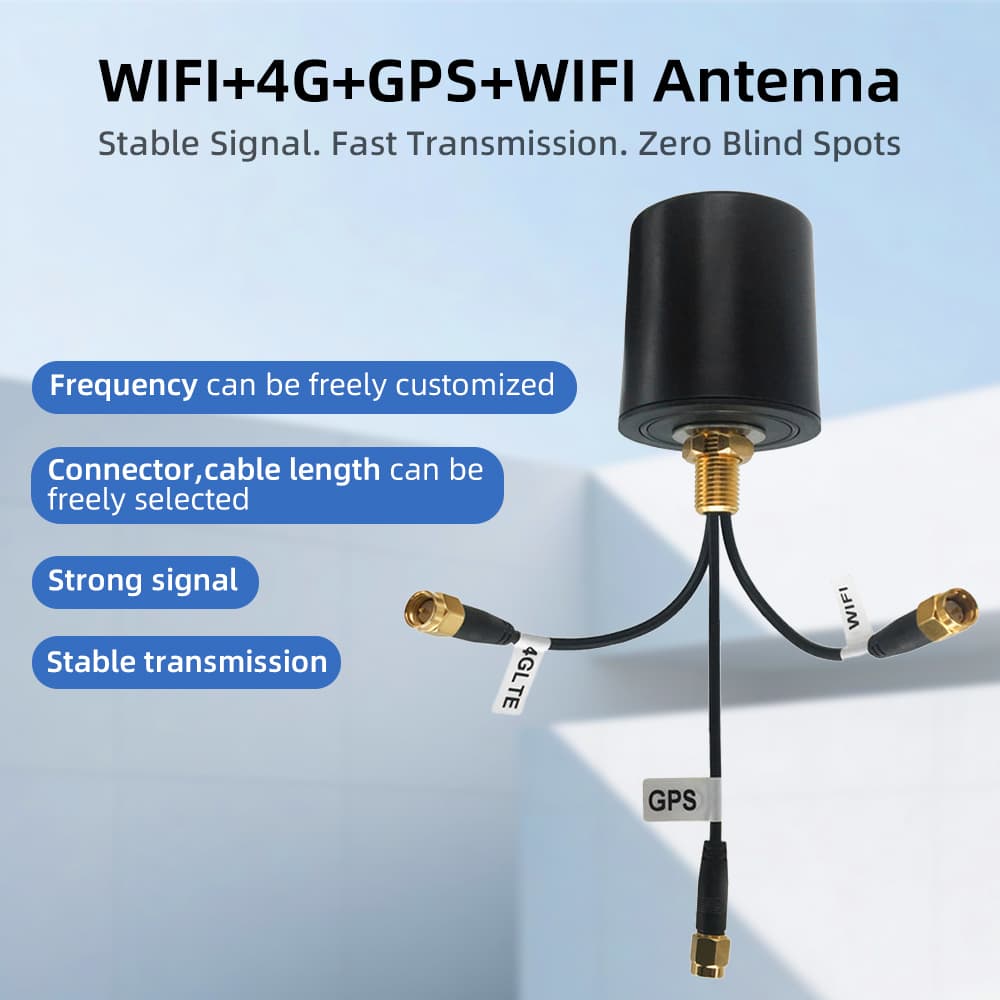

- GPS, WiFi and 4G LTE in One Compact Antenna-This combo antenna integrates GPS, WiFi, and 4G LTE functions into a single compact housing, making it easier to equip devices that require positioning and wireless communication at the same time. Each function uses an independent RF cable, allowing direct connection to the corresponding modules inside the equipment while keeping the overall antenna layout simple and organized.
- Multi-Band Support for Different Wireless Modules-Designed for multi-functional wireless devices, this antenna supports GPS at 1575.42MHz, 4G/LTE from 698–2700MHz, and WiFi from 2400–2500MHz. It features 50Ω impedance, vertical polarization, and VSWR ≤1.5 to match common wireless module requirements. The connector type, cable length, and frequency configuration can be customized based on the specific device design.

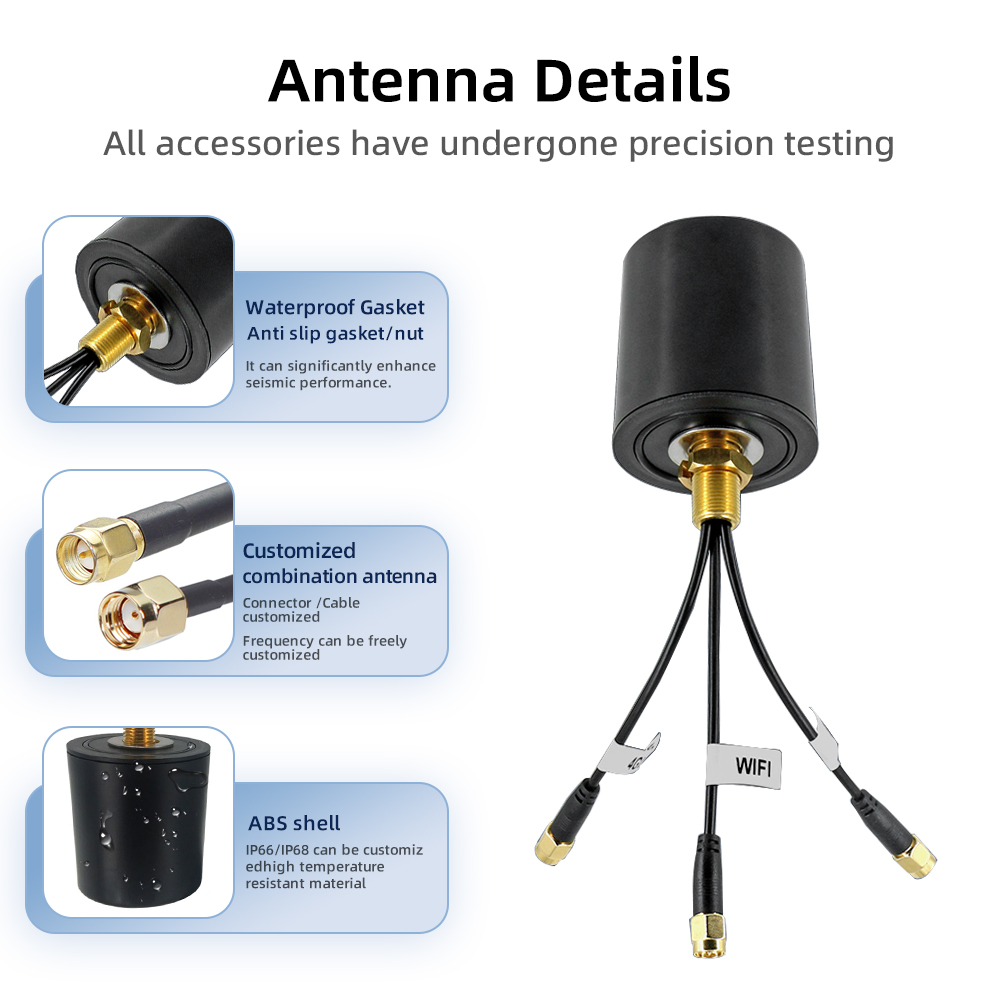

- Screw Mount Structure for Secure Equipment Installation-The Screw mount antenna uses a threaded mounting design that allows secure installation through cabinets, panels, or equipment housings. The antenna is mounted externally, while the RG174 cables are routed inside the enclosure and connected to the GPS, WiFi, and 4G modules. This design is suitable for equipment where a fixed mounting position and clean cable routing are required.
- Compact Combined Antenna for IoT and Connected Devices-By combining multiple wireless functions into one housing, this Combined antenna reduces the need for installing separate antennas for each module. It is commonly used with IoT gateways, industrial terminals, tracking equipment, smart cabinets, and other connected devices where GPS positioning and wireless data communication are required in a compact installation space.
- Flexible Configuration for Outdoor and Industrial Equipment-With a durable housing and waterproof sealing structure, this antenna can be integrated into outdoor or exposed equipment when the complete installation is properly sealed. As an Outdoor combo antenna and Waterproof IoT antenna, it can be configured with different connectors, cable lengths, and mounting options to meet the requirements of industrial IoT systems, remote monitoring devices, and other connected applications.

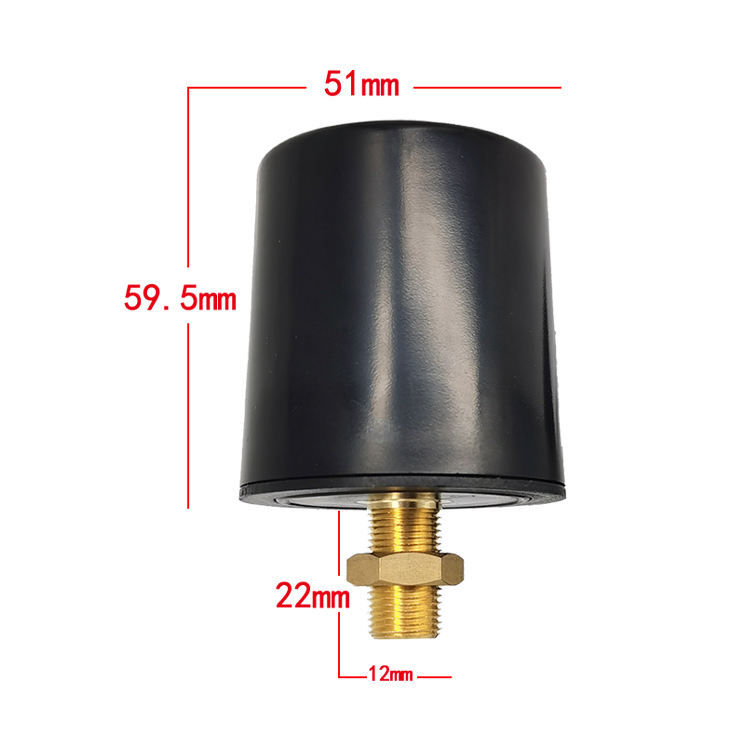

Parameter
| Type | Combination Antenna | Antenna Gain | 28/3/3 |
| Number Of Bands | 1 | Terminals | SMA |
| Installation | Screw | Connector Type | Male |
| Model Number | TSD-P156824Z28-65 | Return Loss | 1 |
| Brand Name | SDDTMB | Place of Origin | Guangdong, China |
| Height | 65MM | Ingress Protection | 1 |
| Polarization | Vertical | Maximum input power | 50w |
| Antenna Frequency | 1575.42MHz/698-2700MHz/2400-2500MHz | Type | TSD-P156824Z28-65 |
| Frequency Range | 1575.42MHz/698-2700MHz/2400-2500MHz | Gain-dBi | 28/3/3 |
| Polarization Type | Vertical | Maximum input power (W) | 50 |
| Input Impedance () | 50 | Lightning Protection | DC grounding |
| Connector type | SMA-J or Customizable | Cable Type | RG174 |
| Cable length (Meter) | 2.5±0.03M can be customized |
Application
IoT Gateways & Smart Devices-Used with IoT gateways, edge devices, and smart terminals that require both positioning and wireless connectivity. By combining GPS, WiFi, and 4G LTE in one housing, the combo antenna helps simplify installation for compact devices where space for multiple antennas is limited.
Fleet Tracking & Vehicle Telematics-Designed for fleet tracking systems, vehicle telematics, and connected equipment that need location information together with cellular communication. The integrated antenna design keeps GPS, WiFi, and LTE connections in one assembly, making it easier to install on vehicle-mounted devices and mobile equipment.
Industrial IoT & Remote Monitoring-Commonly used in industrial gateways, monitoring terminals, and remote data collection systems that require wireless communication in the field. The Screw mount antenna can be installed directly on cabinets or equipment enclosures, with separate RF cables connected to the internal GPS, WiFi, and cellular modules.
Smart Cabinets & Connected Equipment-Suitable for smart cabinets, control systems, and connected equipment that combine multiple wireless functions in a single device. The compact design helps keep the installation clean while providing a practical solution for equipment that requires GPS positioning and network communication.
Asset Tracking & Outdoor IoT Applications-Used for asset tracking devices, field terminals, and outdoor connected equipment where both location tracking and wireless communication are needed. As a GPS WiFi 4G antenna, it combines several wireless functions into one compact assembly. With proper equipment sealing, it can also be applied as a Waterproof IoT antenna for outdoor installations.
FAQ
Q1. Can GPS, WiFi, and 4G LTE be combined into one antenna?
Yes. This combo antenna combines GPS, WiFi, and 4G LTE functions in one compact housing. Each function has its own RF cable, allowing the GPS, WiFi, and cellular modules inside the equipment to be connected separately.
This type of design is a practical solution for devices that need multiple wireless connections but have limited space for installing separate antennas.
Q2. What frequency bands does this GPS WiFi 4G antenna support?
The standard configuration supports GPS at 1575.42MHz, 4G/LTE from 698–2700MHz, and WiFi from 2400–2500MHz. The antenna is designed with 50Ω impedance, vertical polarization, and VSWR ≤1.5.
Because wireless modules and network bands can vary between different devices and regions, the frequency range, cable length, and connector type can be customized to match the equipment requirements.
Q3. How is this antenna installed on a cabinet or enclosure?

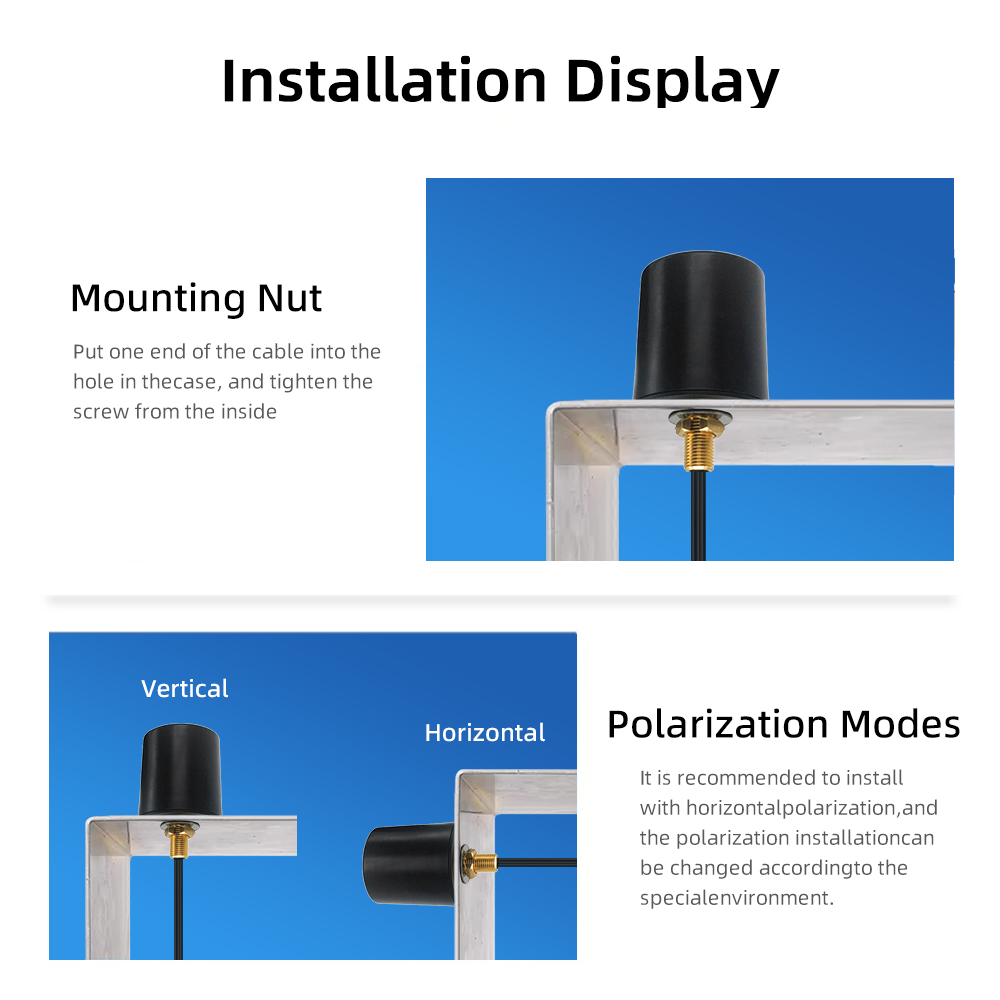

The antenna adopts a threaded Screw mount antenna design, allowing it to be fixed through a suitable panel, cabinet, or equipment enclosure. The antenna housing remains outside, while the RF cables are routed inside to connect with the corresponding modules.
Before installation, it is recommended to confirm the panel thickness, mounting position, and cable routing space to ensure the antenna fits the equipment properly.
Q4. What details should I provide for a customized antenna?
To confirm the right configuration, it is helpful to provide the wireless module model, required frequency bands, connector type, cable length, and installation requirements.
For a Combined antenna used in IoT gateways, tracking equipment, or industrial applications, these details help ensure the antenna matches the device design and connection requirements before production.
