Product Overview
- Flexible 5G/LTE Coverage – This outdoor antenna is designed for 5G and LTE equipment, with 3–5 dBi gain, vertical polarization, 50 Ω impedance, and VSWR below 1.5. The operating frequency can be customized to match the required 5G band and wireless module, making it suitable for different network configurations and equipment designs.

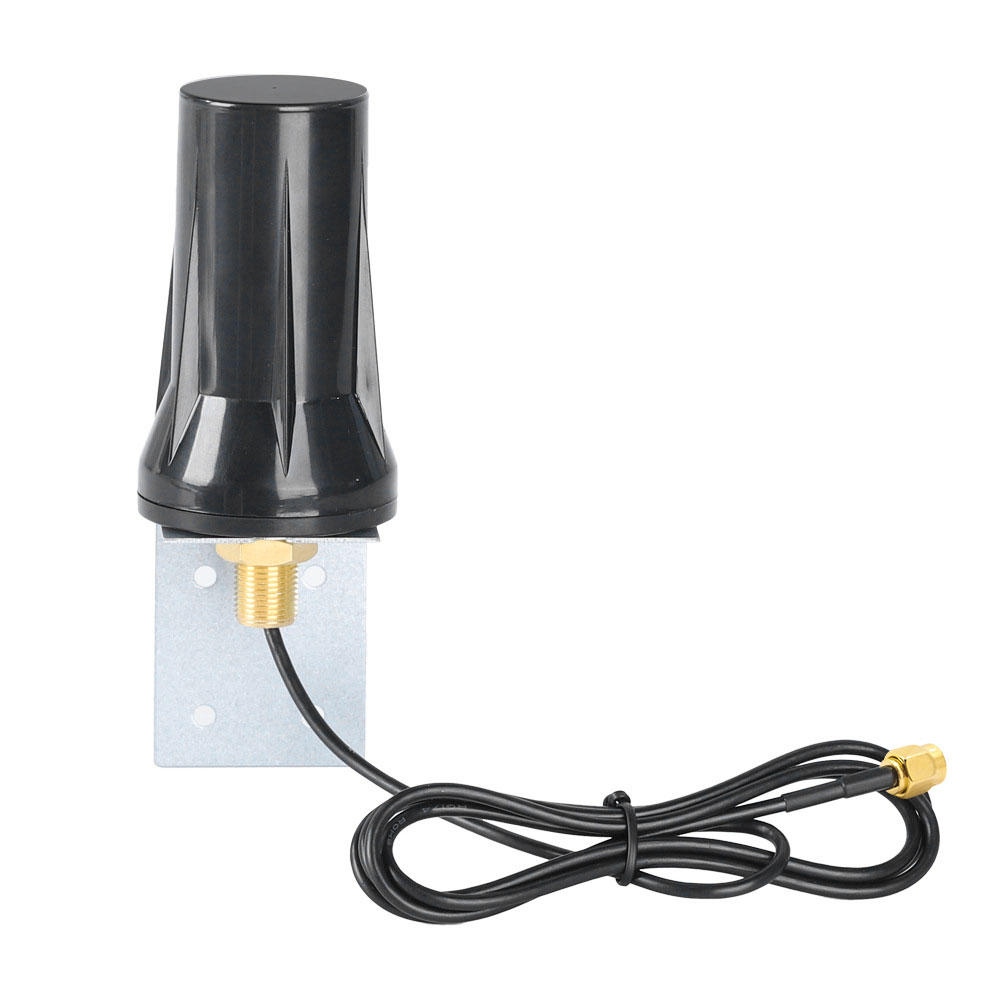

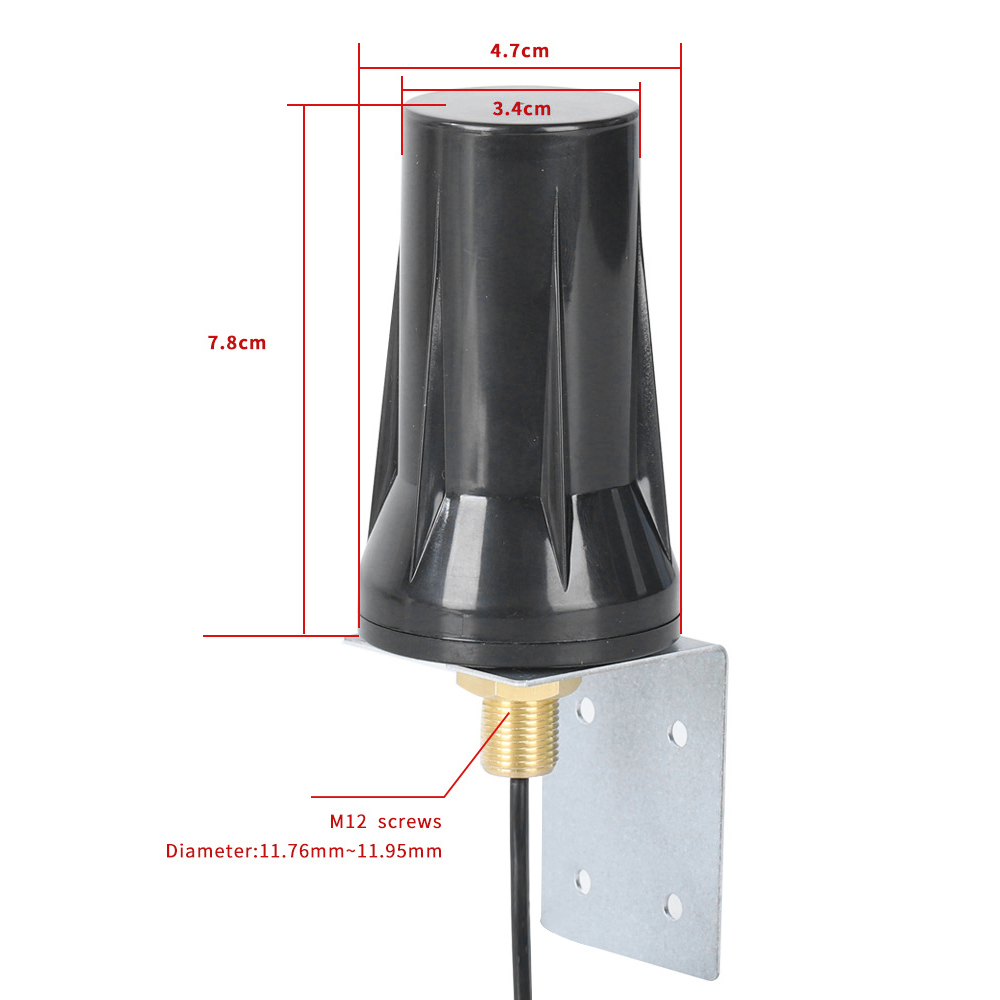

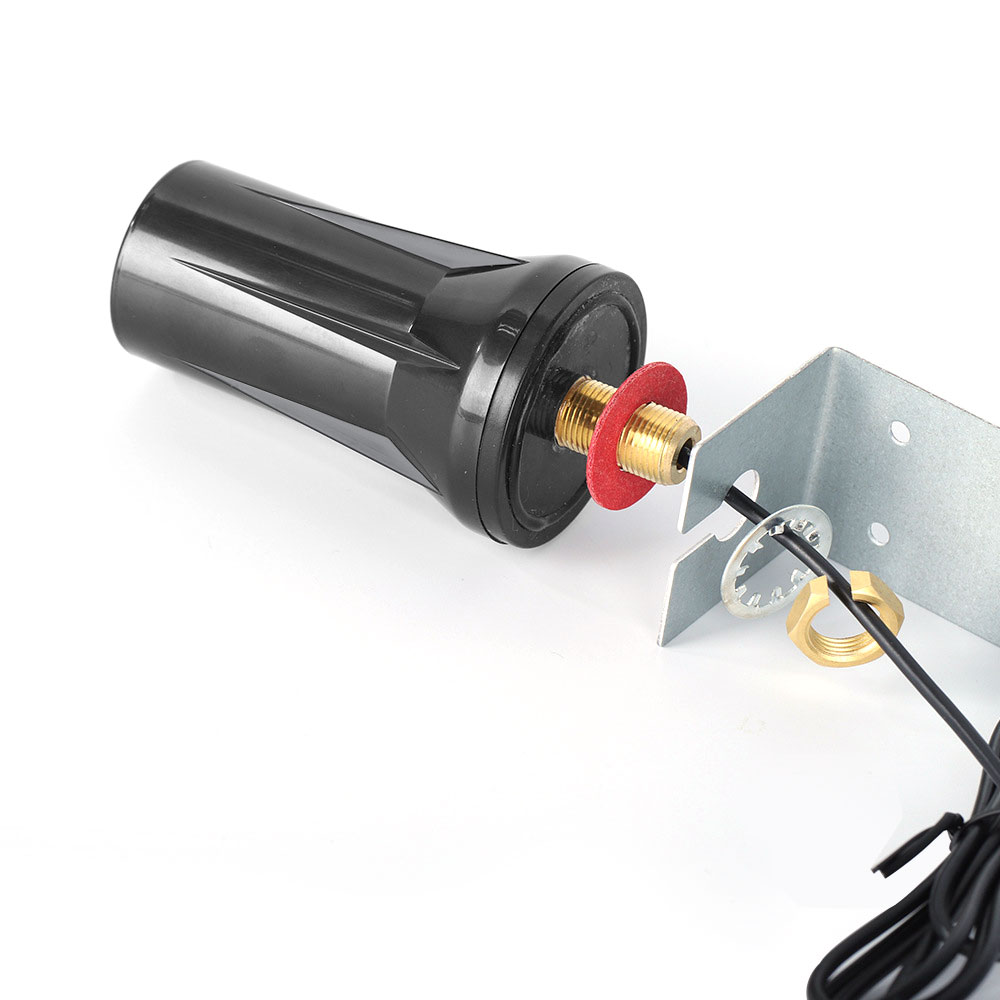

- Compact Stubby Design for Cabinet Mounting – The short stubby antenna has a compact form that works well on cabinets and equipment enclosures. It mounts through the panel with a threaded structure, while the RF cable is fed inside and connected to the wireless module. This keeps the antenna outside the enclosure without taking up unnecessary space around the equipment.

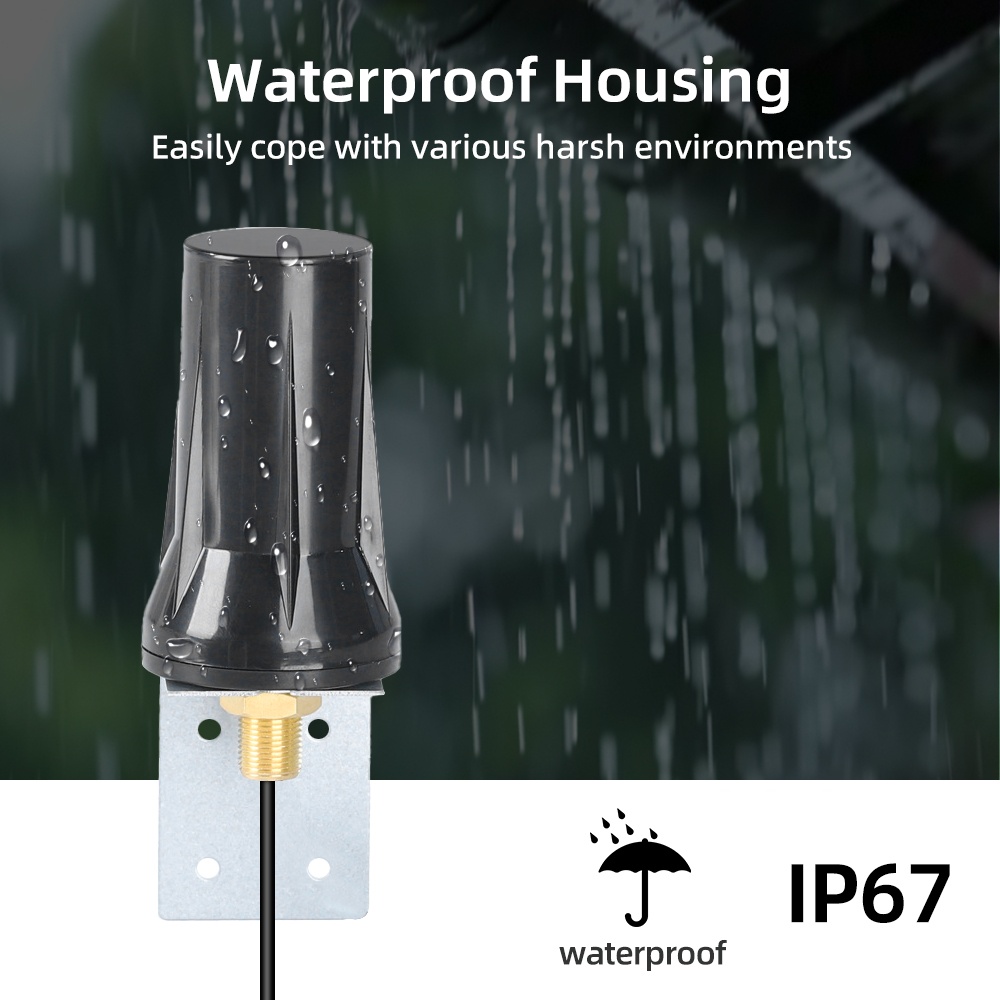

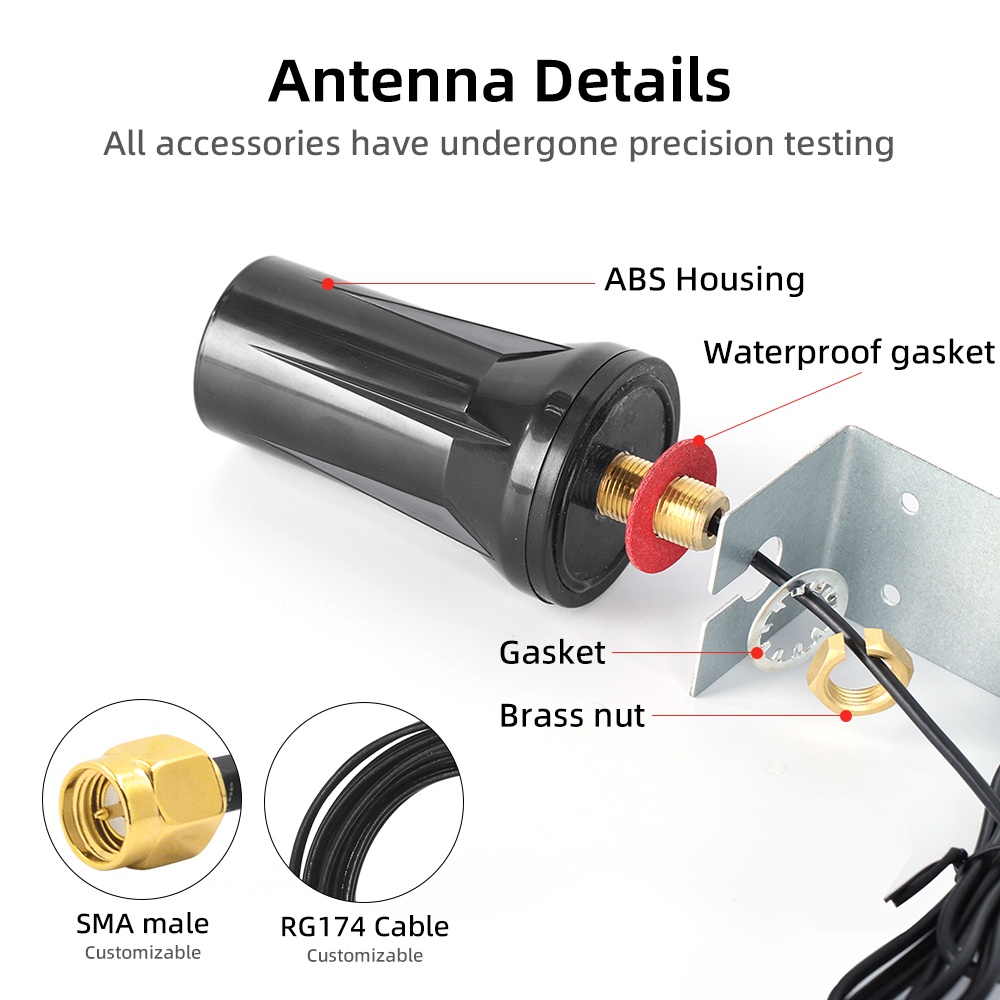

- IP67 Protection for Outdoor Installations – The ABS housing is rated IP67, with a waterproof gasket and sealing components around the mounting point. It is suitable for outdoor cabinets, industrial equipment, and other installations where the antenna may be exposed to rain, dust, or moisture. Proper sealing of the equipment panel is still important for the complete installation.
- SMA Connector with Custom Cable Options – The standard configuration shown uses an SMA male connector, with cable length and connector type available for customization. This allows the antenna to be matched with different 5G routers, gateways, cellular modules, and industrial communication equipment. For an SMA 5G antenna setup, the connector and cable can be specified according to the actual device interface and installation distance.
- Made for Industrial and Connected Equipment – This external antenna is suitable for industrial IoT gateways, smart cabinets, monitoring equipment, charging systems, and other devices that use 5G or LTE connectivity. For an industrial IoT gateway 5G outdoor antenna project, the frequency, connector, cable length, and mounting configuration can be tailored to the equipment and installation environment.
Parameter
| Type | 5G Outdoor Antenna | Antenna Gain | 3-5 DBI |
| Terminals | support customized | Installation | can be customized |
| Connector Type | can be customized | Model Number | FS-C4 |
| Brand Name | support OEM | Place of Origin | Guangdong, China |
| Polarization | vertical | Antenna Frequency | 5G or customized |
| Model Number | FS-C4 | DBI | 3-5 DBI |
| Frequency | 5G | VSWR | less than 1.5 |
| Installation | screw | Connector | Can be customized |
| Cable length | can be customized | Input Impedance | 50 |
Application
Industrial IoT Gateways & Cellular Routers-A good fit for industrial IoT gateways, 5G routers, CPEs, and other cellular equipment used in factories, warehouses, and remote locations. The compact stubby antenna takes up little space and can be mounted directly on the equipment enclosure.

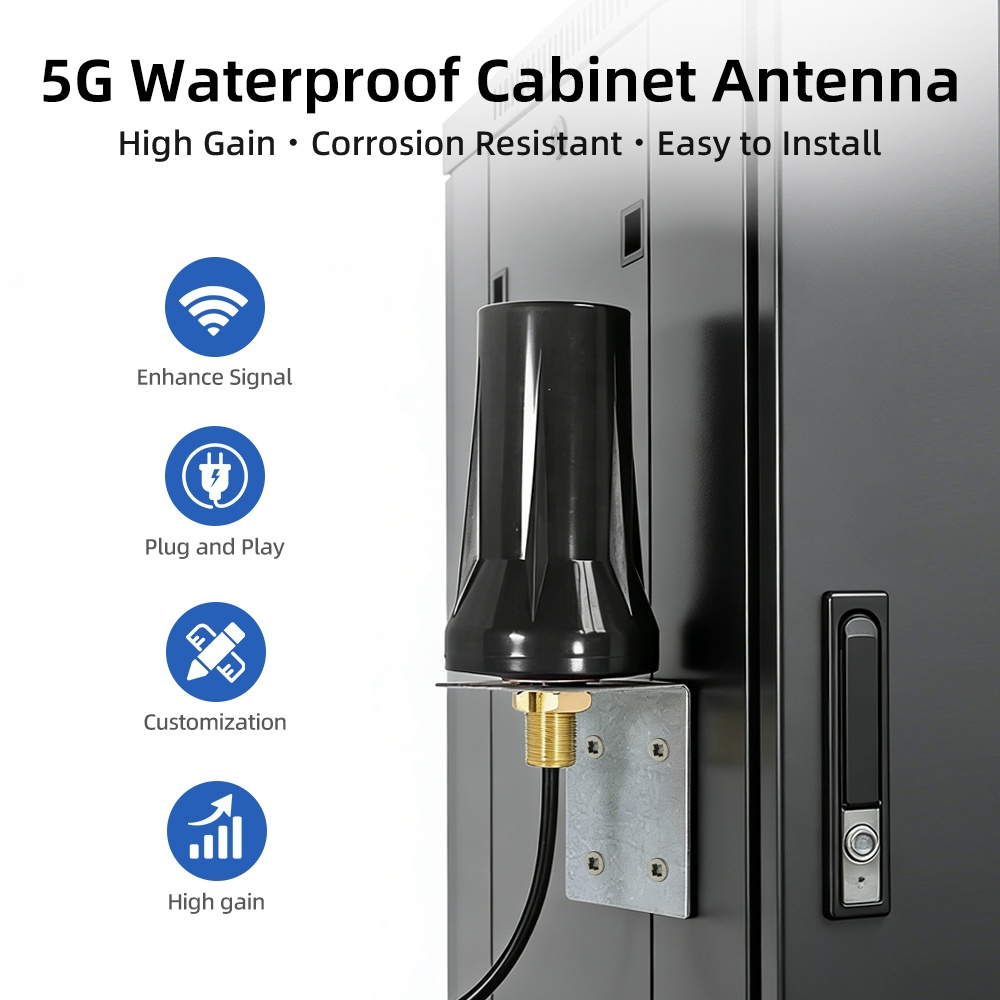

Outdoor Cabinets & Field Equipment-For outdoor control cabinets, electrical enclosures, automation equipment, and field devices with built-in 5G or LTE communication. The threaded mounting structure secures the external antenna to the cabinet, while the RF cable runs inside to the wireless module.
Remote Monitoring & Telemetry-Used in remote monitoring terminals, telemetry equipment, and other connected devices that send data over a cellular network. With the antenna mounted outside the enclosure, the wireless module can remain protected inside the cabinet or equipment housing.
EV Charging & Smart Energy-Well suited to EV charging stations, smart energy equipment, and connected power systems that use cellular communication for remote monitoring and data transmission. The IP67-rated outdoor antenna is designed for installations where the equipment may be exposed to dust and moisture.
Industrial Automation & Connected Equipment-For industrial automation systems, monitoring equipment, smart infrastructure, and other 5G/LTE-enabled devices. The compact housing and threaded mounting make it easy to add a small external antenna to cabinets and fixed equipment without taking up much space.
FAQ
Q1. How can I check if this antenna will work with my 5G device?
The main points to match are the frequency band, connector, and mounting method. This model offers 3–5 dBi gain, vertical polarization, 50 Ohm impedance, and VSWR below 1.5. As 5G bands can vary by device and market, you can send us your device model or required frequency, and we can check the antenna configuration for you.
Q2. Is it suitable for outdoor installation?
Yes. The ABS housing is IP67-rated, so the antenna can be used on outdoor cabinets, industrial equipment, gateways, and other exposed installations. The antenna itself is protected against dust and water, while the cabinet and cable entry should also be properly sealed as part of the overall installation.
Q3. What connector and cable length do I need?
The standard configuration shown uses an SMA male connector. If your device uses a different connector or you need a particular cable length, these can be customized. For an SMA 5G antenna application, you can send us the connector type on your device and the required cable length, and we can confirm the available option.
Q4. Can you customize the antenna for my equipment?
Yes. We can adjust the frequency, connector, cable length, and mounting configuration to suit different equipment and project requirements. The antenna can be used with industrial IoT gateways, smart cabinets, monitoring equipment, and other cellular devices. If you are looking for an industrial IoT gateway 5G outdoor antenna, send us the device model, frequency bands, connector, and installation details, and we can check the suitable configuration.
