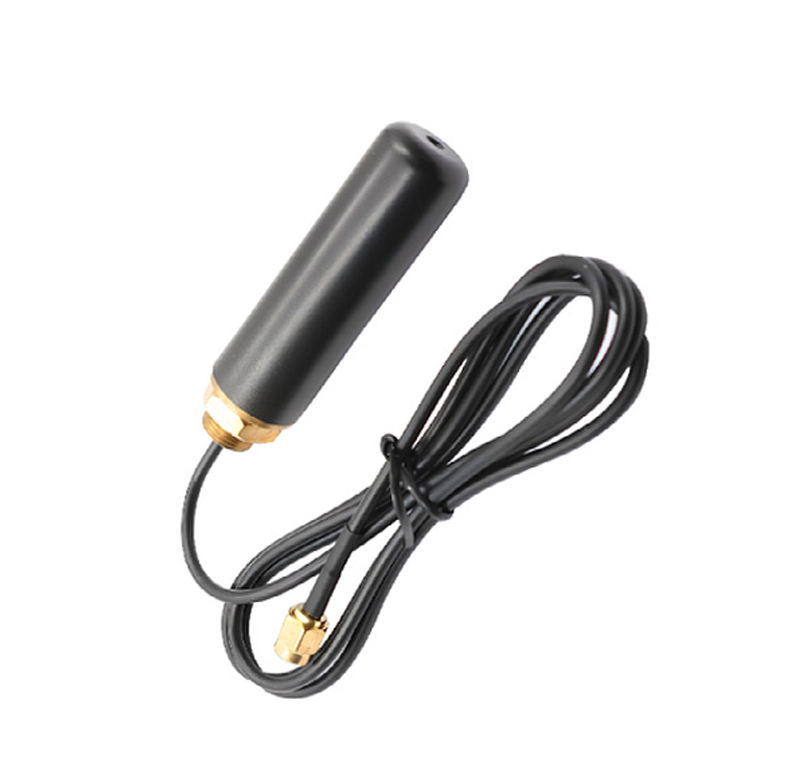

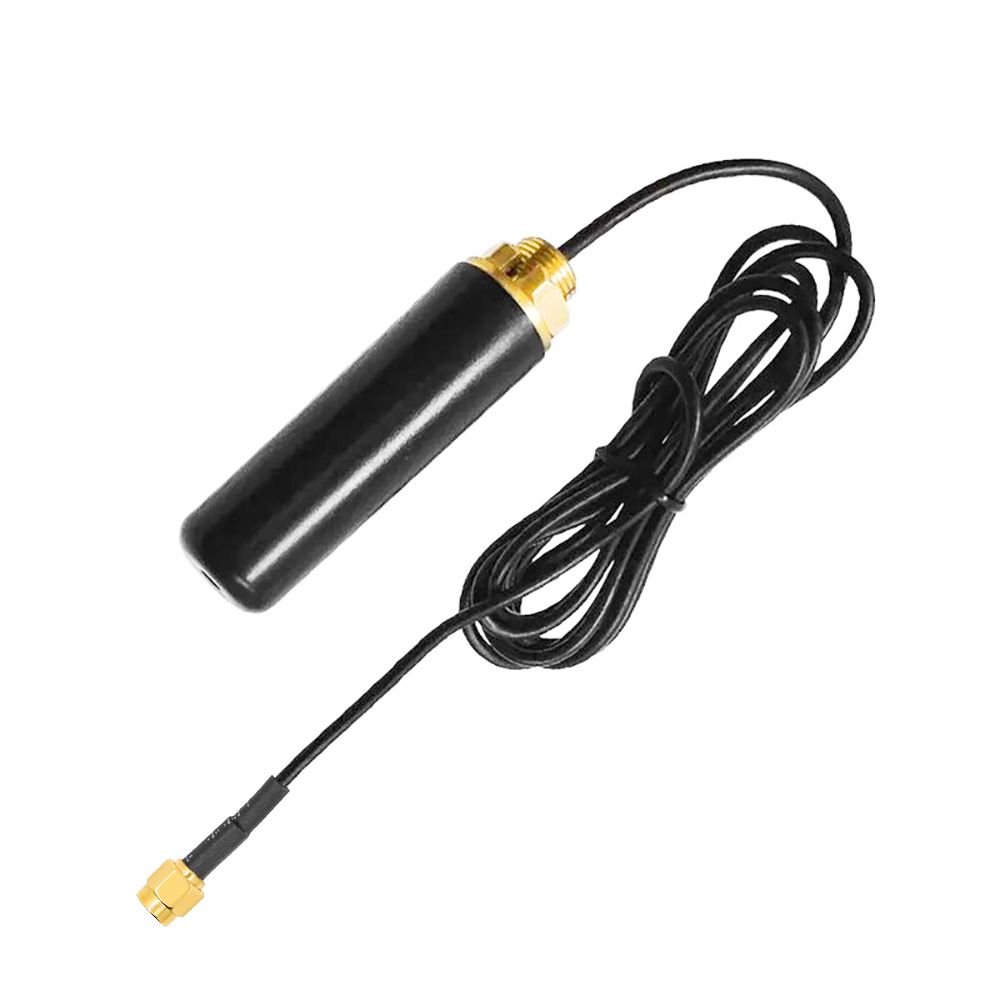

Product Overview
- Custom Frequency for Different Wireless Systems — This Custom Antenna can be built for the frequency band your equipment uses. Options are available for 4G, 5G, WiFi, LoRa, NB-IoT, GNSS, and other wireless systems.
- 9dBi Gain for Reliable Signal Performance — The antenna is rated at 9dBi gain, with 50Ω impedance and VSWR below 1.5. The frequency and other specifications can be matched to the requirements of the target device.

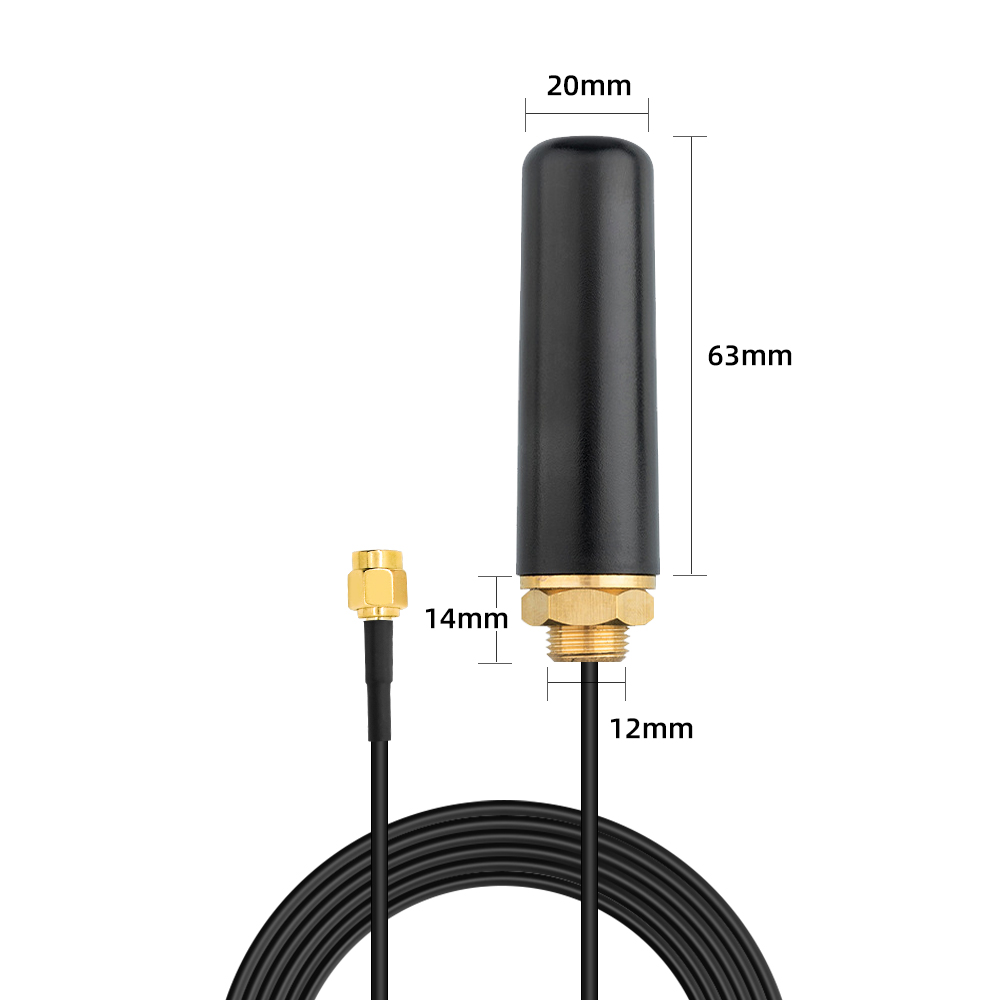

- Screw-Mount Design for Easy Integration — The antenna is fixed through a threaded hole on the equipment panel or enclosure, while the RF cable runs to the wireless module inside. This allows the External Antenna to sit outside the housing without using up space inside.

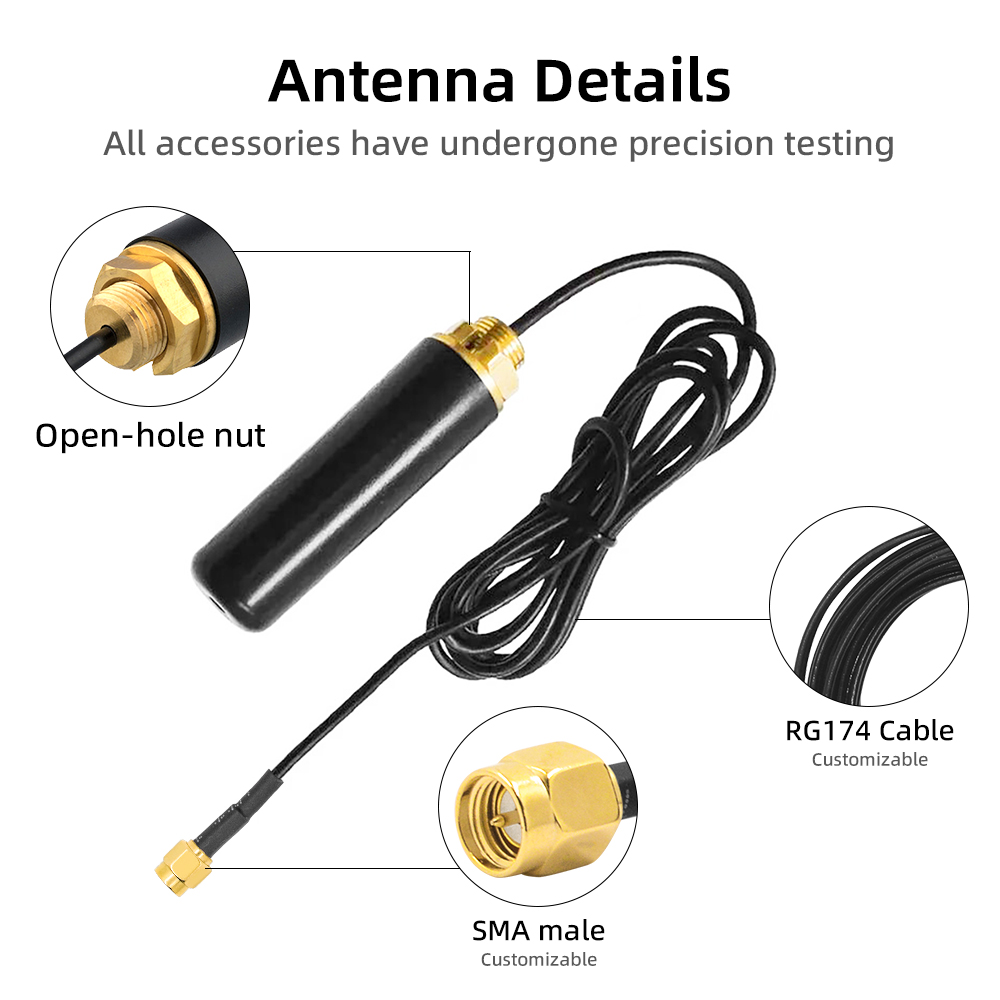

- Cable and Connector Options — Different RF cables, cable lengths, connectors, and terminals are available to suit different equipment. Cable options include RG1.13, RG174, RG178, and RG58, with connector configurations available for OEM orders.
- OEM/ODM Support for Different Applications — This antenna can be used with wireless routers, CPEs, gateways, IoT equipment, cabinets, and other communication devices. For different antenna applications, we can customize the frequency band, number of bands, gain, cable, connector, and other specifications.
Parameter
| Type | 5G Cabinet Antenna | Antenna Gain | 9DBI |
| Number Of Bands | can be customized | Terminals | support customized |
| Connector Type | Male | Model Number | FS-JG003 |
| Brand Name | support OEM | Place of Origin | Guangdong, China |
| Polarization | RHCP | Antenna Frequency | 600-6000MHz/can be customized |
| Input impedance | 50Ω | VSWR | less than 1.5 |
| Applications | Widely used everywhere | Connector | customized |
| Polarization | Vertical | Material | ABS |
Application
Wireless Networking-A practical choice for wireless routers, CPE equipment, network terminals, and other devices where the antenna is mounted outside the enclosure. Frequency, connector, and cable options can be matched to the equipment for a cleaner and easier installation.
Industrial IoT-Well suited to industrial IoT gateways, wireless data terminals, and connected equipment used for collecting and transmitting field data. The Custom Antenna can be specified to suit the frequency and wireless system used by the equipment, which makes integration easier for different device designs.
Remote Monitoring & Data Communication-For remote monitoring terminals, telemetry equipment, and wireless data collection systems that send information to a central platform. The External Antenna sits outside the enclosure, while the communication module and other electronics remain inside.

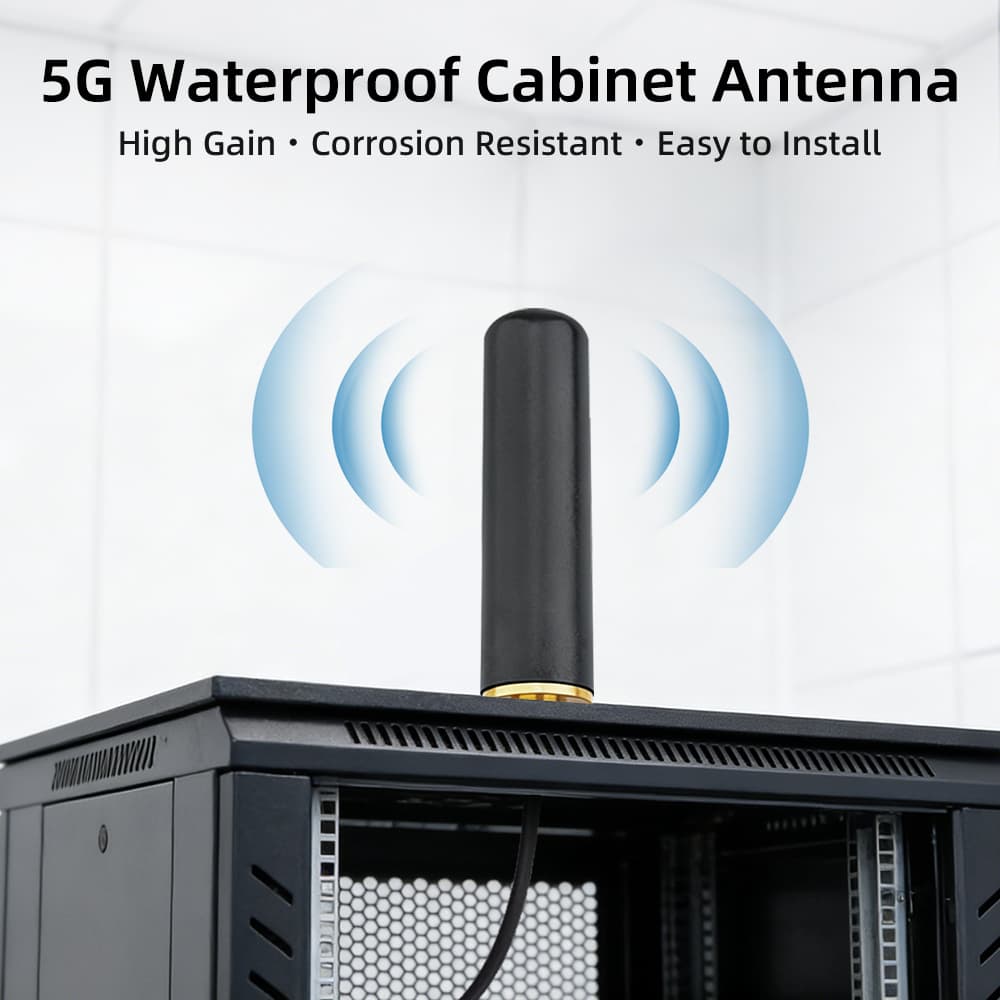

Smart Cabinets & Control Systems-A good fit for smart cabinets, control equipment, and connected systems that combine wireless communication with electrical or automation components. The screw-mount design allows the antenna to be fixed directly to the enclosure without making the installation unnecessarily complicated.
4G/5G Connected Equipment-Suitable for cellular routers, gateways, CPE systems, and other connected equipment used for remote access, monitoring, and data transmission. Frequency bands, cable specifications, and connectors can be selected to suit the equipment and different antenna applications.
FAQ
Q1. Can you make the antenna for a specific frequency?
Yes. We can make the antenna to match the frequency your equipment uses. 4G, 5G, WiFi, LoRa, NB-IoT, GNSS, and other frequency requirements can all be discussed.
Q2. How do I know if this antenna will fit my equipment?
The frequency, connector, cable length, and mounting size all need to match your equipment. This External Antenna uses a screw-mount design, and the cable and connector can be changed to suit your setup. If you send us your device model or existing antenna details, we can check it for you.
Q3. How is the antenna installed?
The antenna is fixed through a threaded hole on the equipment panel or enclosure. The antenna sits outside the housing, with the RF cable running to the wireless module inside. It can be used on routers, CPEs, gateways, cabinets, and other fixed wireless equipment.
Q4. What can you customize for an OEM order?
We can customize the frequency, number of bands, gain, cable type, cable length, connector, and terminals according to your requirements. If you have a specific antenna application, just send us the frequency, device model, connector, and cable requirements, and we can check the available options.
