Fiberglass Omni Antenna for Outdoor IoT Gateway
- Connectors and length customization
- Frequency band customization
- Regarding size customization
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
Share to:
Product Overview
Fiberglass Omni Antenna | Outdoor Waterproof Omni Directional Antenna for Industrial IoT Gateway and Utility Cabinet
Product features:

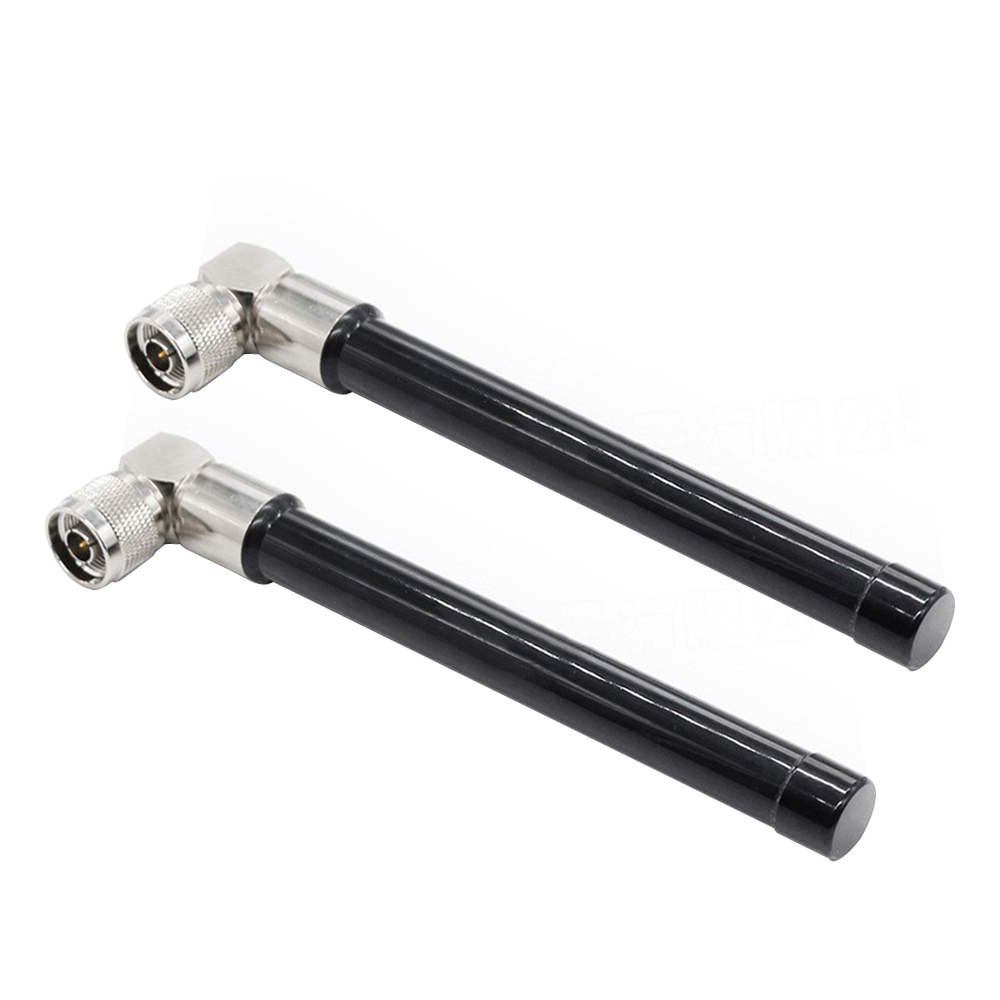

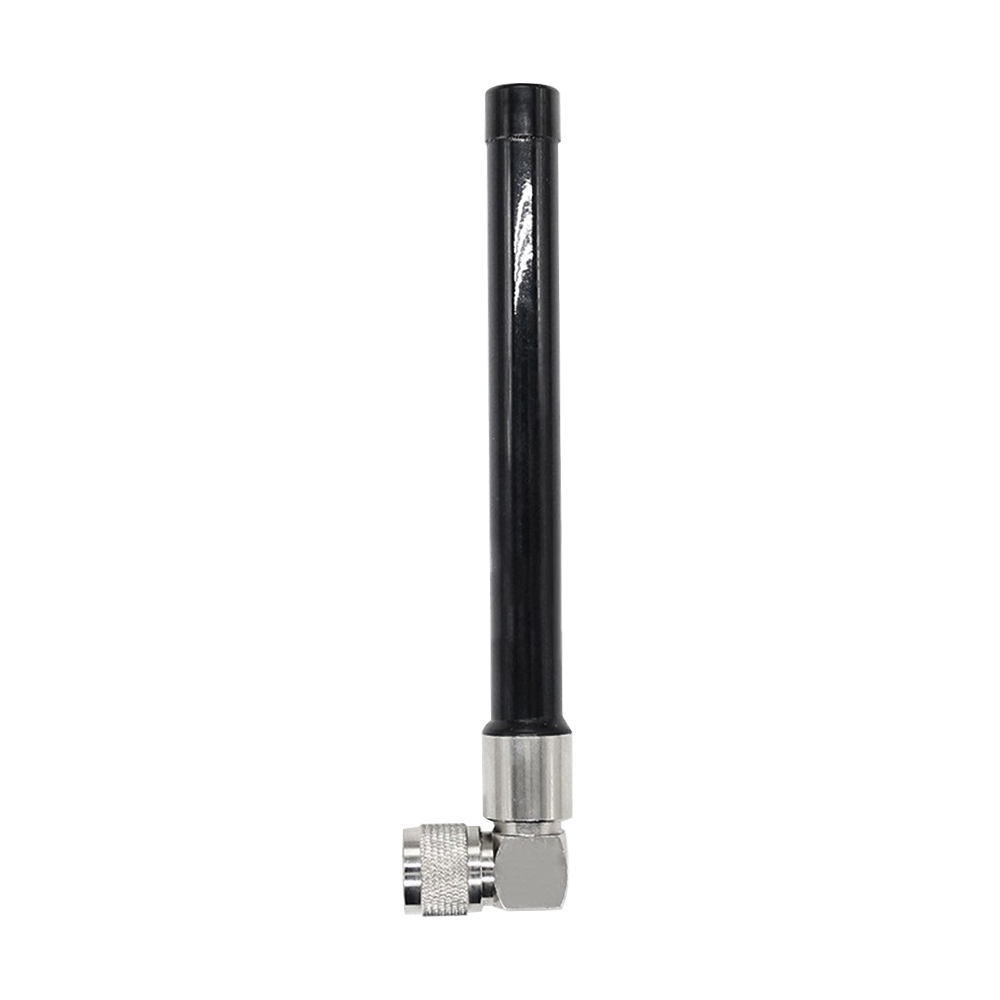

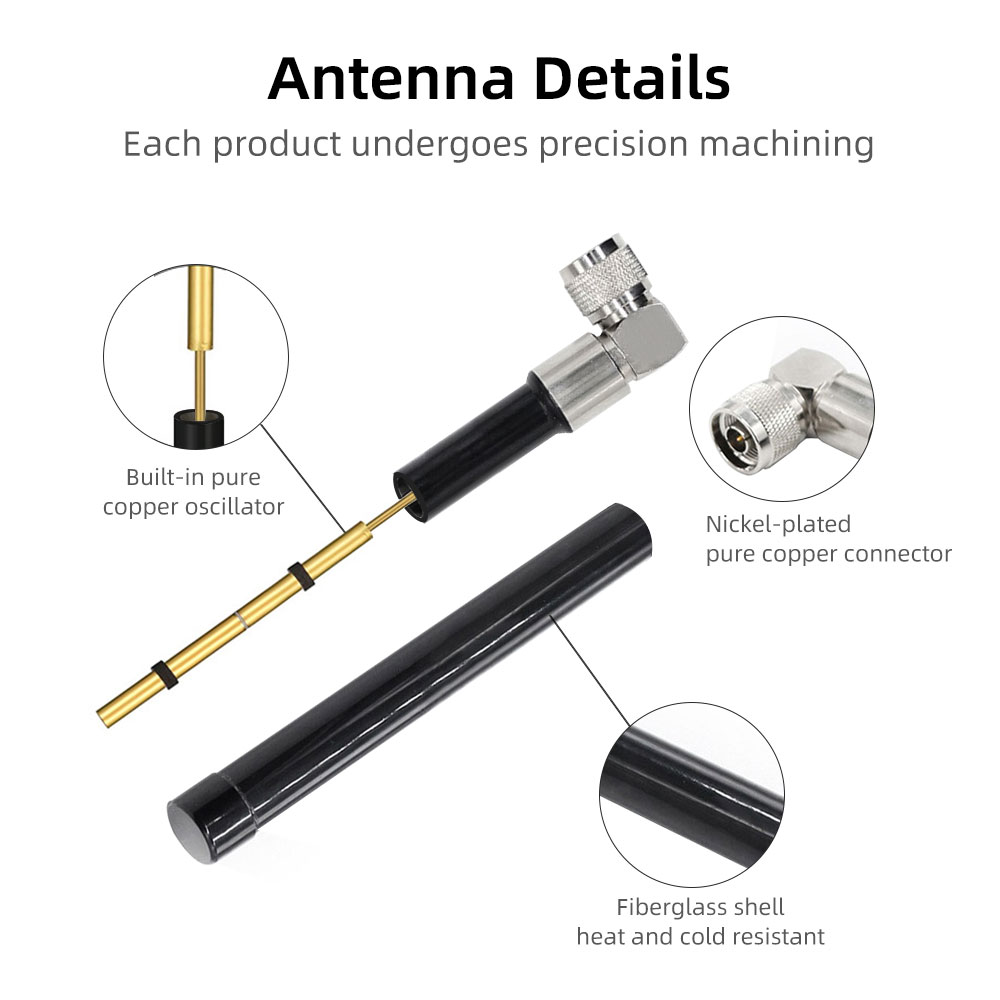

The FS-F10 is a fiberglass omni antenna designed for outdoor cabinets and IoT gateways. Its 90° N male connector allows the antenna to sit close to the enclosure, helping avoid interference with rain hoods and access doors. The FRP radome and pure copper radiator are designed for outdoor use in changing weather conditions. Available in 25–60 cm lengths, the antenna offers 5–15 dBi gain and a VSWR of ≤1.9.
Parameter
| Type | FRP Antenna | Antenna Gain | 10 |
| Number Of Bands | 4G or customized | Terminals | N-female or customized |
| Model Number | FS-F10 | Place of Origin | Guangdong, China |
| Size | 25, 32, 45, 50, 60cm | VSWR | ≤1.9 |
| Frequency | 2.4g, 3g, 4g, or other customized | Color | White/Black/Grey |
| Nominal Impedance | 50ohm | Gain | 5-15dBi |
| Connector Type | N Male Connector or customized | Material | Fiberglass |
| Working environment | Large area without differential coverage | Type | FRP Antenna |
| Single gross weight | 3.0 kg | Single package size | 30X30X30 cm |
Application
Industrial IoT Gateways & Equipment Cabinets-Metal cabinets can leave little room around an antenna port, especially near doors or rain hoods. The FS-F10 fiberglass omni antenna features a 90° N male connector that helps it fit neatly against the cabinet while keeping the door clear. Its sealed radome is suited to long-term outdoor use.
Utility Metering & 470–510 MHz Telemetry-Smart meters and distribution automation systems need stable wireless links for remote data collection. With a copper radiator and fiberglass radome, the FS-F10 is designed for outdoor installations exposed to changing temperatures. The right-angle base also helps save space on pole-mounted and wall-mounted cabinets.
4G/LTE Remote Monitoring-Pump stations, irrigation systems and remote monitoring units often need reliable cellular connections with minimal site maintenance. An outdoor waterproof fiberglass omni antenna provides 360° coverage without directional alignment, making it a practical choice for remote equipment.
Outdoor Coverage for Large Areas-Farms, ports, construction sites and industrial yards often have wireless devices spread in different directions. An omni directional antenna mounted on a suitable mast can serve devices around the site, with antenna length and gain selected to match the coverage requirements.
Wall Mounting & Limited-Clearance Installations-Eaves, building facades and parapets can restrict the space available for an outdoor antenna. The FS-F10’s 90° N male connector helps it fit where a straight connector may get in the way. When choosing a fiberglass antenna manufacturer, check that the connector and mounting style suit your installation.
FAQ
Q1. What frequency bands are available?
The FS-F10 fiberglass omni antenna is available for 470–510 MHz, 2.4 GHz and selected 3G/4G bands. Other frequencies may be available on request. Let us know your exact operating frequency, along with your preferred gain, and we can recommend a suitable version.
Q2. How does the 90° N male connector mount?
The right-angle N male connector mates with a compatible N female interface on a bulkhead, bracket or coaxial cable assembly. Its 90° design helps the antenna fit into tight spaces around cabinets and enclosures. Let us know how you plan to mount it and whether the connector will be exposed to rain, so we can advise on the fitting and weatherproofing.
Q3. Is the antenna suitable for year-round outdoor use?
The FS-F10 has a fiberglass radome designed to withstand outdoor exposure, including UV and temperature changes. It suits applications such as outdoor cabinets and remote monitoring sites. For an outdoor waterproof fiberglass omni antenna, the connector joint also needs proper sealing. If you require a specific IP rating or test report, please let us know so we can confirm what is available.
Q4. Which antenna length and gain should I choose?
The FS-F10 comes in lengths from 25 cm to 60 cm, with gain depending on the frequency and configuration. Shorter models are often easier to fit in compact spaces, while longer models may provide greater horizontal coverage. Mounting height and available clearance also matter. Share your frequency, installation height and coverage needs, and we can help you choose the right option.
