Product Overview
- GPS and LTE in One Housing – This combo antenna combines GPS/GNSS and LTE in a single compact housing, so one antenna assembly can handle both positioning and cellular communication. The low-profile design keeps the installation clean and takes up less space than using two separate antennas.

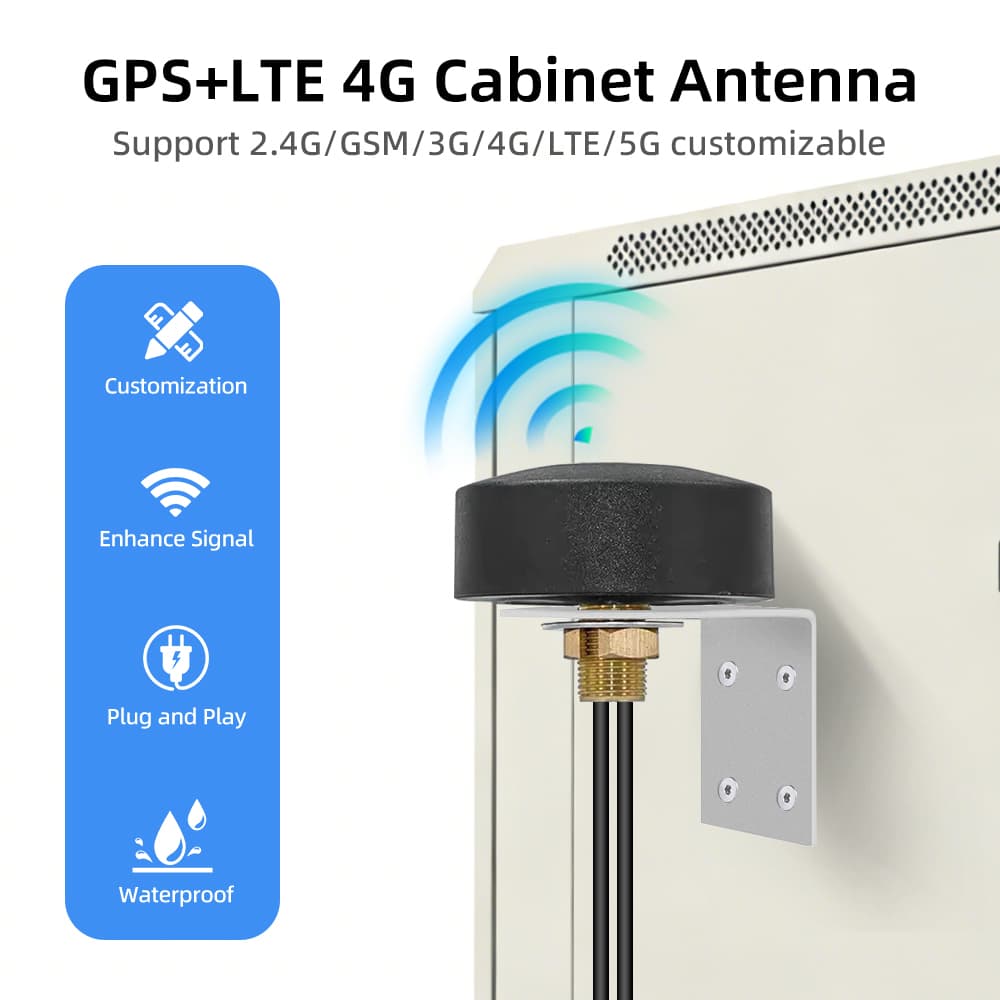

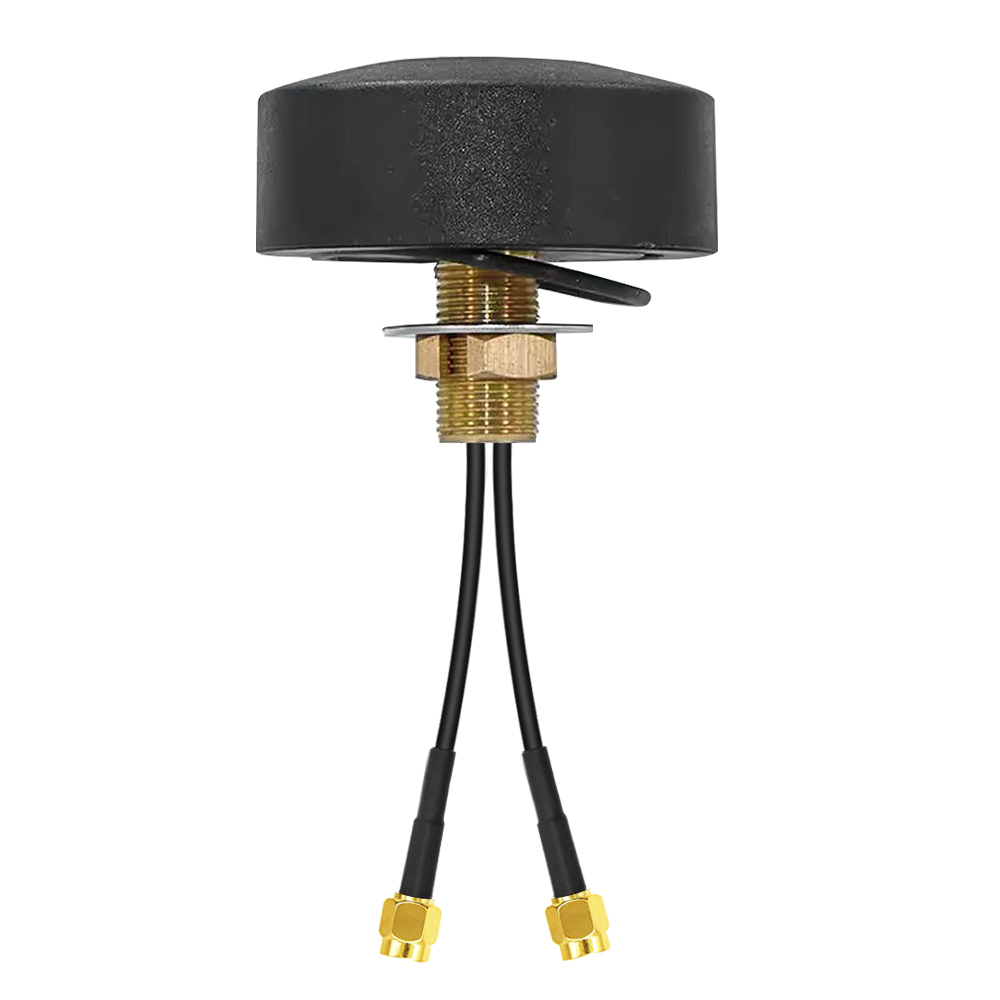

- Compact Puck Design for Cabinet Mounting – The puck antenna is mounted through the cabinet or equipment panel with a threaded connection. The antenna body stays outside the enclosure, while the two RF cables run inside to the GPS and LTE modules. This mounting method works well for cabinets and other equipment where installation space is limited.

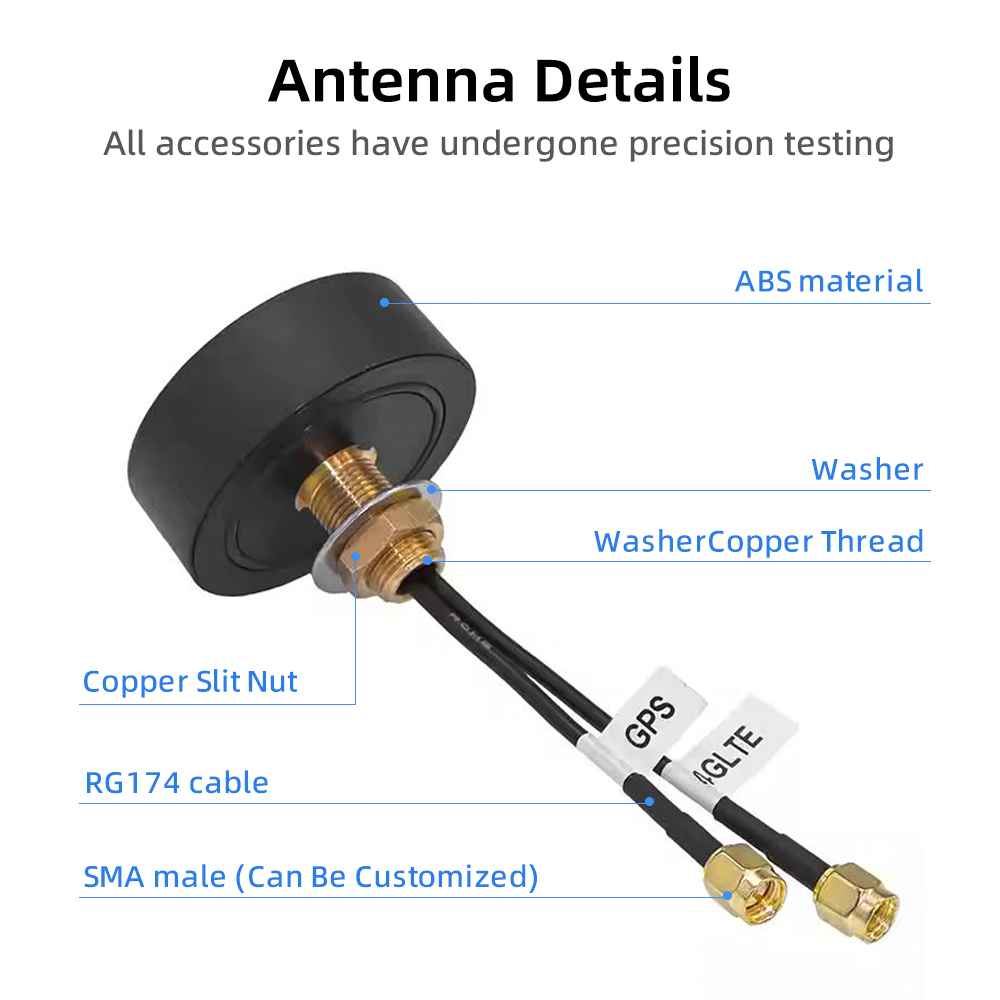

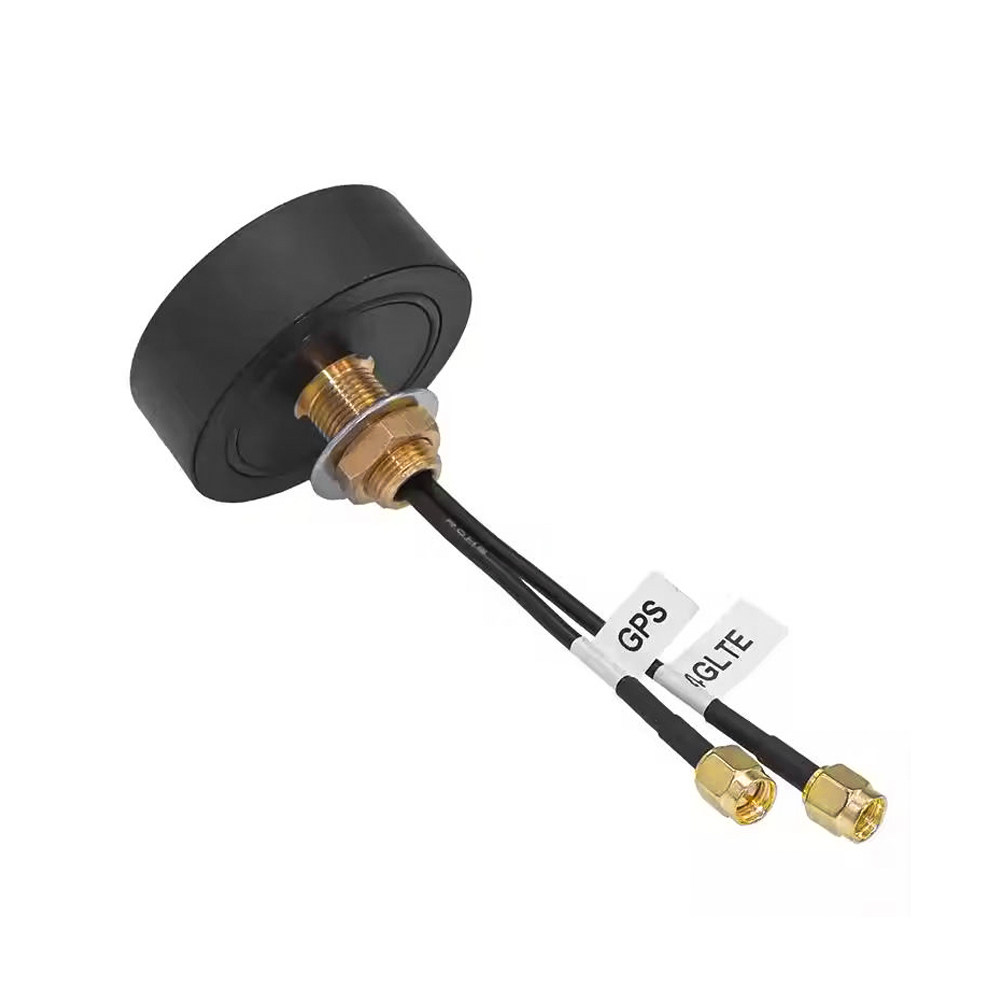

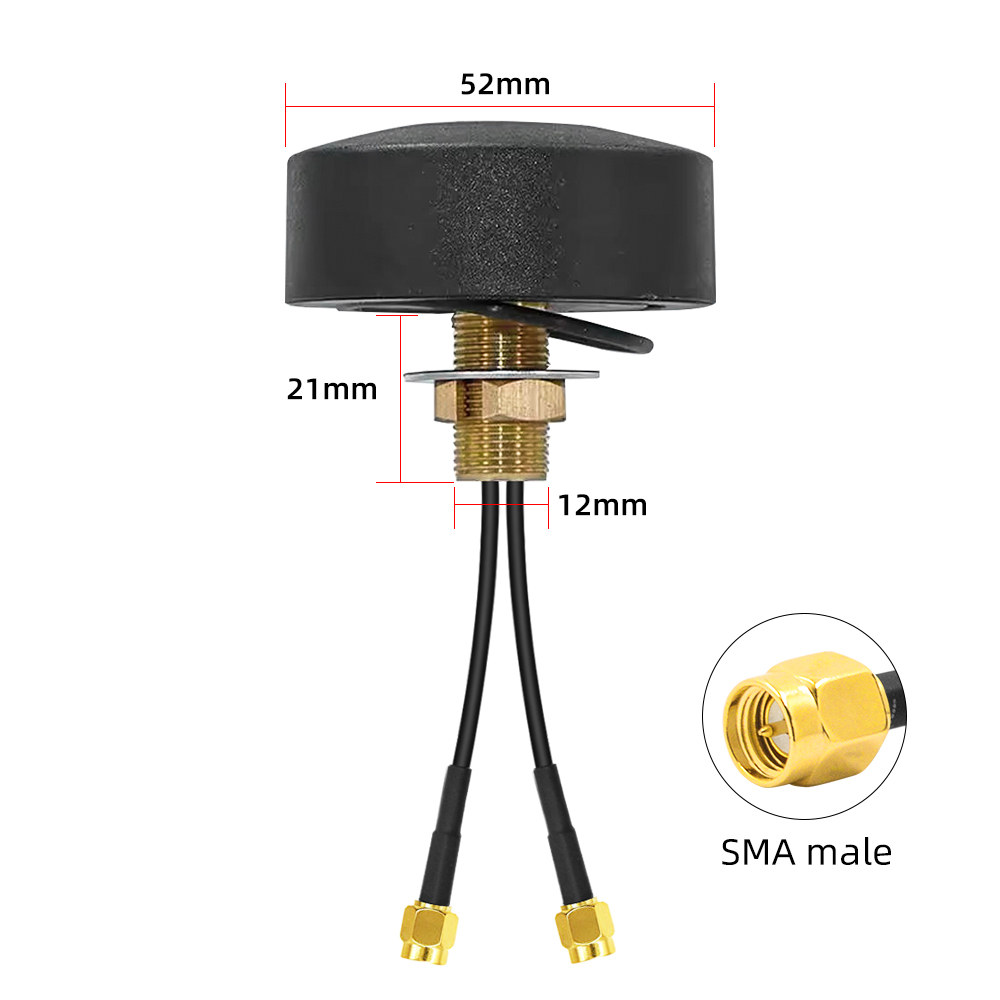

- Separate Connections for GPS and LTE – The shown configuration uses two RG174 cables with SMA male connectors, with one connection for GPS and the other for LTE. Cable length and connector type can be customized to suit the equipment and internal wiring. This makes integration easier when the GPS and cellular modules have separate RF ports.
- Suitable for Tracking and Connected Devices – This IoT antenna can be used for GPS trackers, fleet and asset monitoring equipment, remote terminals, smart cabinets, and other connected devices that need both positioning and cellular communication. As a GNSS LTE antenna, it keeps both functions together without adding another antenna to the equipment.
- Configurable for Different Applications – Frequency, band configuration, connector, cable length, and mounting options can be adjusted to suit different equipment requirements. For projects looking for a GPS + 4G LTE 2-in-1 puck antenna, this compact design is well suited to equipment that needs both GPS and cellular connectivity. It can also be configured for an Omnidirectional GPS LTE cabinet antenna application where a low-profile antenna is mounted directly on the enclosure.
Parameter
| Type | GPS/LTE Combo Antenna | Antenna Gain | 28DBI |
| Number Of Bands | Can be customized | Terminals | support customized |
| Installation | can be customized | Connector Type | can be customized |
| Model Number | FS-G29 | Brand Name | support OEM |
| Place of Origin | Guangdong, China | Polarization | vertical |
| Antenna Frequency | Can be customized | Model Number | FS-G29 |
| Frequency | can be customized | Mounting | Adhesive / Magnetic |
| VSWR | less than 1.5 | Applications | 4G /GPS devices |
| Independence | 50Ω | Connector | Can be customized |
Application
Fleet Management & Vehicle Telematics-Used for fleet tracking, vehicle telematics, and connected vehicle equipment that need GPS positioning and cellular communication at the same time. Having both functions in one housing keeps the antenna installation simple and avoids having to mount separate GPS and LTE antennas.
Asset Tracking & Remote Monitoring-A good option for asset trackers, monitoring terminals, and remote data collection devices that need to know where the equipment is while sending data over a cellular network. The GPS and LTE connections remain separate inside the equipment, while the antenna itself stays in one housing.
IoT Gateways & Smart Terminals-For IoT gateways, smart terminals, and connected devices that use LTE for communication and GPS/GNSS for positioning. The low-profile puck antenna can be mounted directly on the equipment enclosure, which works well when there is not much room for multiple antennas.
Smart Cabinets & Industrial Equipment-Used on smart cabinets, industrial gateways, control equipment, and other fixed systems that combine cellular communication with positioning. The antenna mounts through the enclosure, with the two RF cables running inside to the GPS and LTE modules.
Tracking & Connected Field Equipment-For tracking terminals, remote equipment, and other field devices that need both location information and wireless data communication. As a GNSS LTE antenna, it brings the two functions together in one assembly, with the frequency, connector, and cable length configurable to match the equipment.
FAQ
Q1. Can GPS and LTE work with the same antenna?
Yes. This combo antenna puts GPS/GNSS and LTE into one housing, with a separate RF cable for each function. The two connections can then be connected to the corresponding ports on your device. It is a convenient option for tracking equipment, connected terminals, and other devices that need both positioning and cellular communication.
Q2. How can I make sure the antenna matches my device?
The main things to check are the GPS/GNSS and LTE frequency bands, connector type, cable length, and mounting space. These details can be customized to suit the wireless modules you are using. If you send us your device model or the specifications of the original antenna, we can check the configuration with you before production.
Q3. How is the antenna mounted?

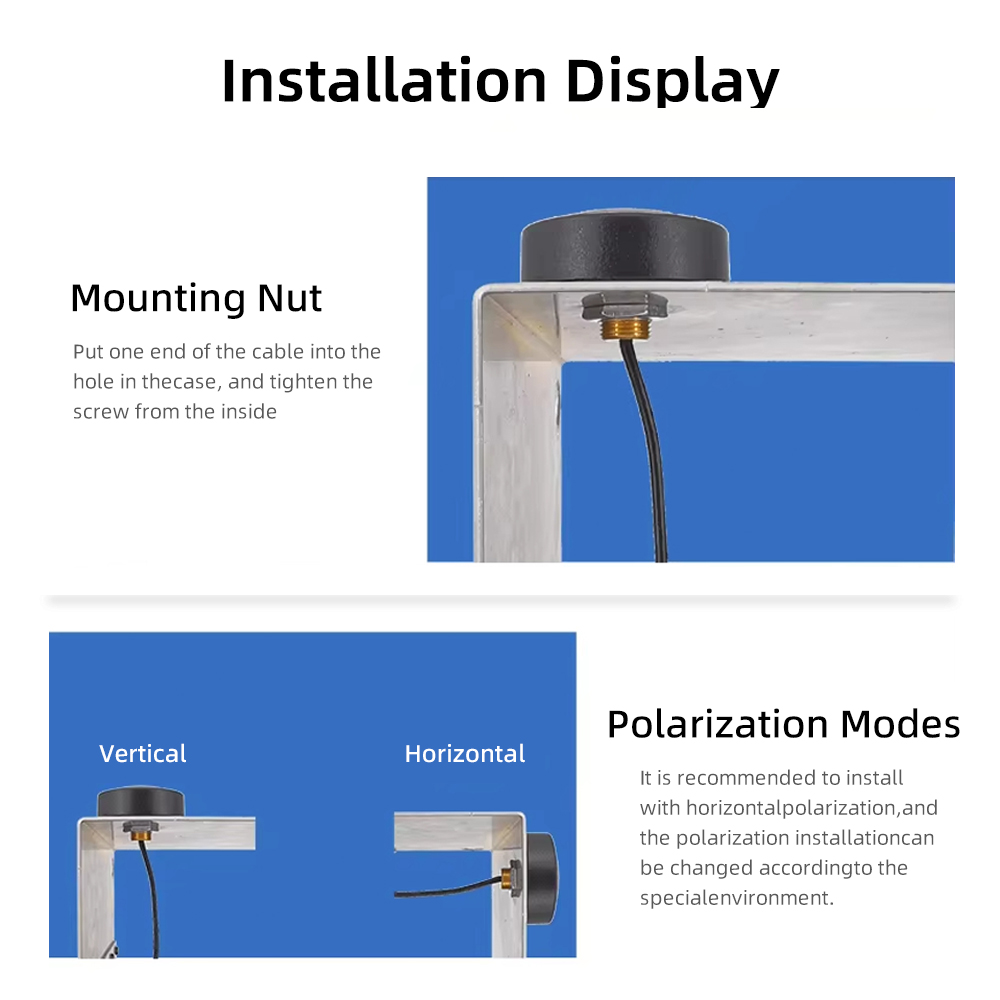

The antenna is installed through a suitable panel or equipment enclosure using its threaded mounting structure. The puck antenna stays outside, while the two RF cables pass through the panel and connect to the GPS and LTE modules inside. Before installation, it is a good idea to check the panel thickness and the space available around the mounting point.
Q4. What connectors and cable lengths are available?
The configuration shown uses two RG174 cables with SMA male connectors, with one cable for GPS and the other for LTE. If your equipment uses a different connector or requires a different cable length, these can be customized to suit the installation. We can also check the cable routing based on the actual equipment layout.
