Fiberglass WiFi Antenna for Marina Dock Coverage
- Connectors and length customization
- Frequency band customization
- Regarding size customization
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
Share to:
Product Overview
Outdoor Waterproof WiFi Antenna for Construction Site
Product features:

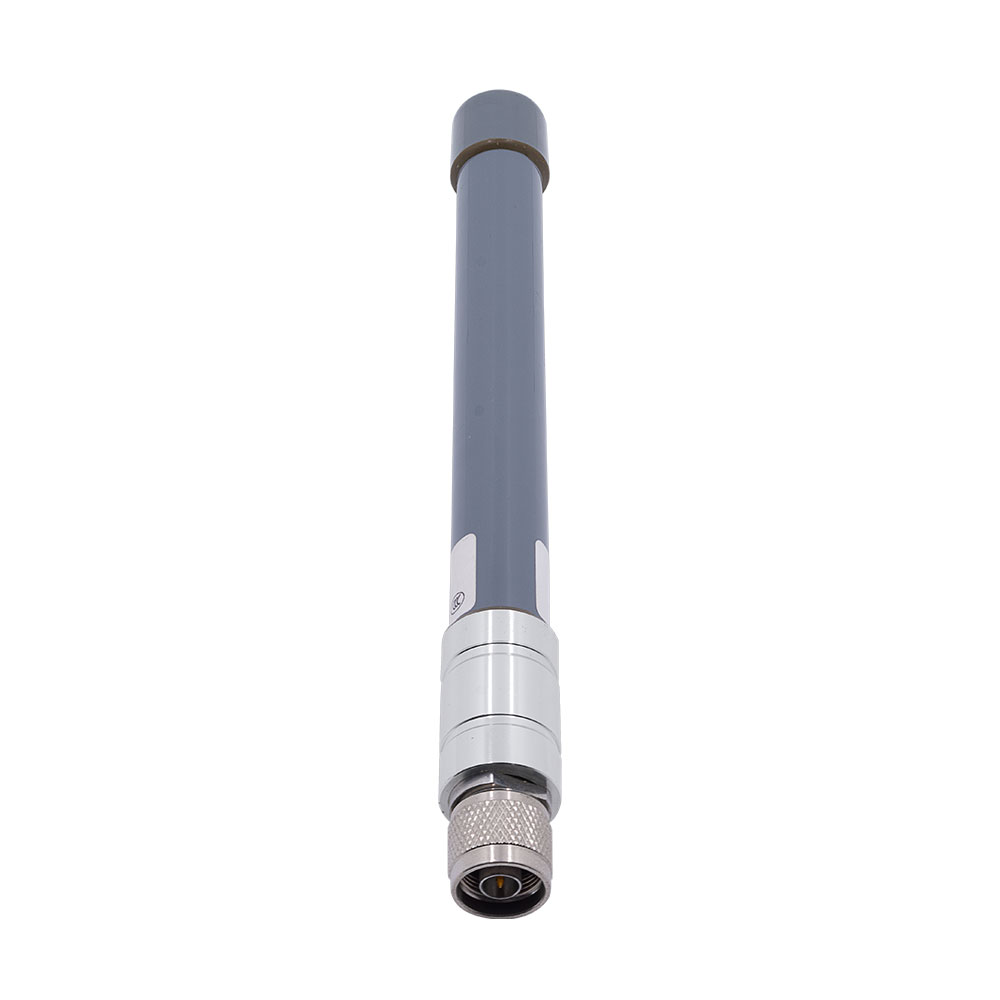

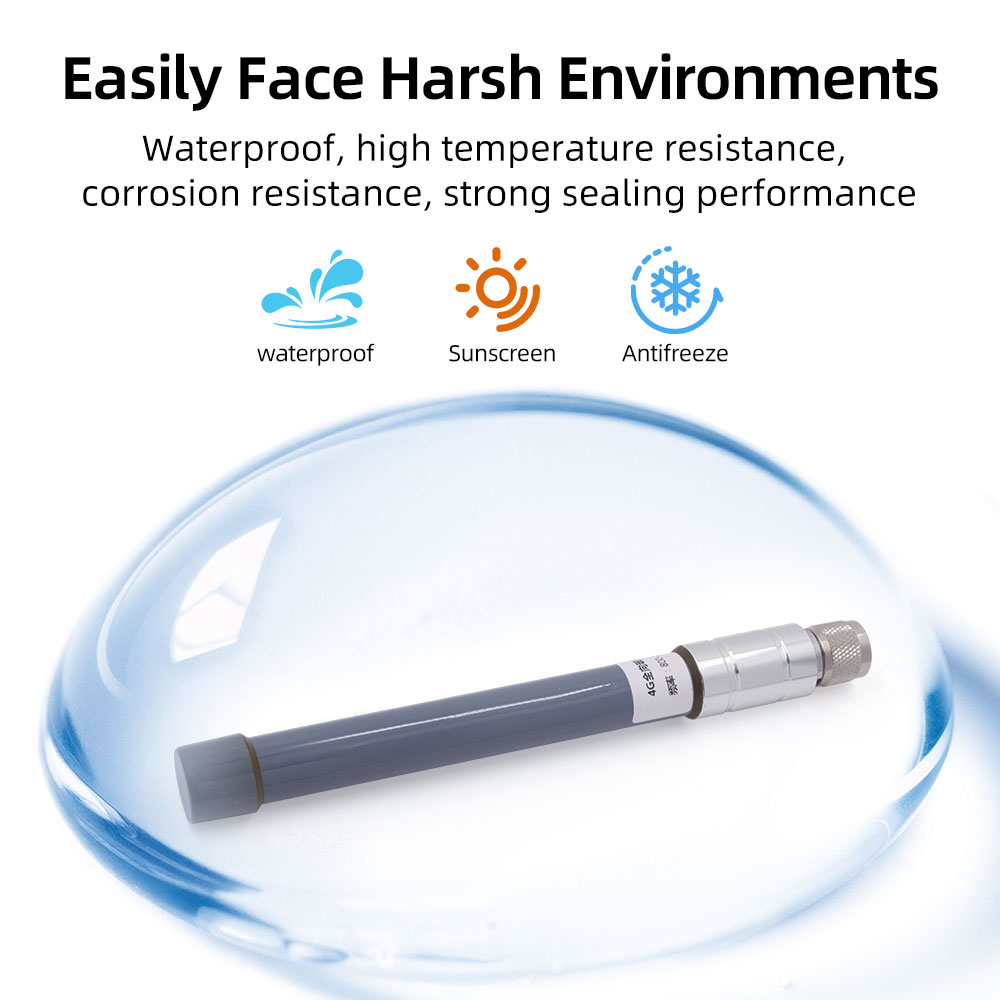

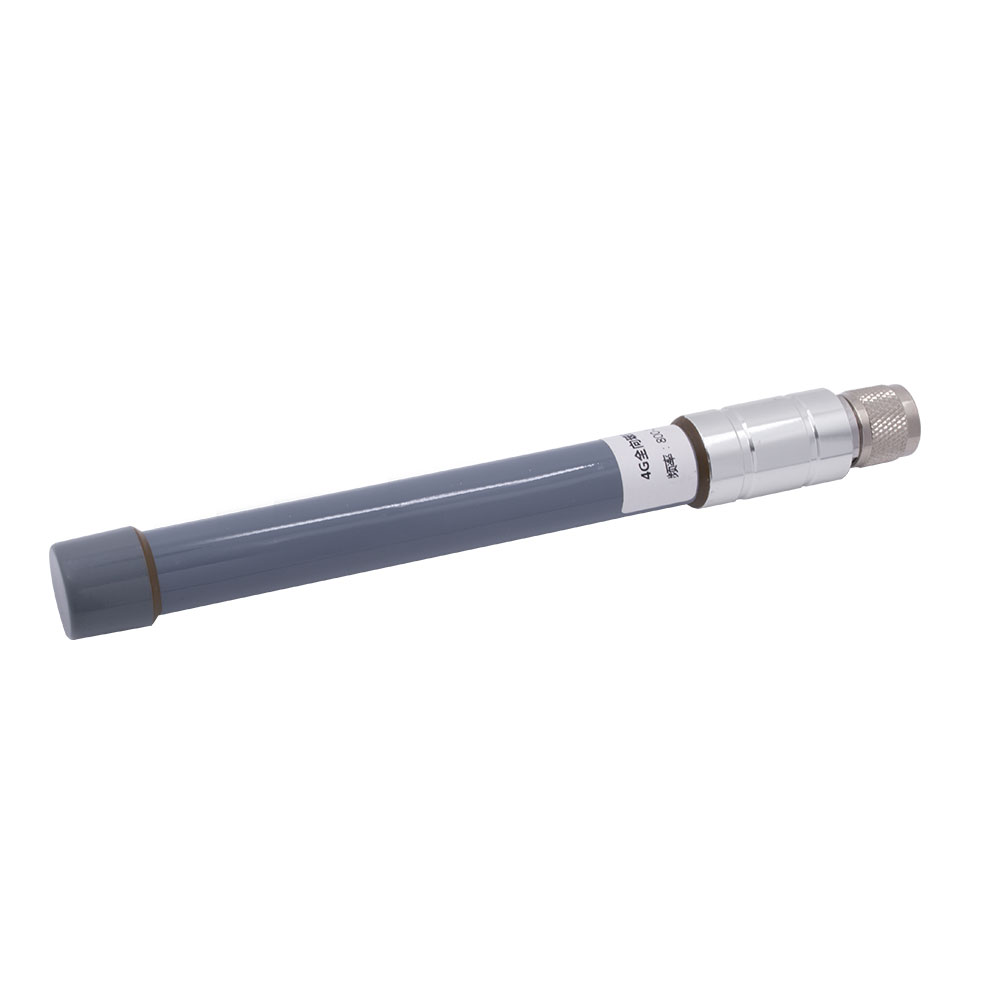

The FS-F1 is a fiberglass WiFi antenna for 2.4 and 5 GHz applications. It provides 8 dBi gain with an omnidirectional radiation pattern, along with a VSWR of 1.5 or less at 50 ohms and a maximum input power of 50 W. The sealed fiberglass housing is built for outdoor use, with protection against rain, frost and prolonged sun exposure. A screw-on collar secures the antenna directly to a mast, while the N female connector at the base allows connection to a compatible coaxial jumper. As a fiberglass omni WiFi antenna, it provides coverage around the mounting point rather than focusing the signal in one direction, making it a practical choice for open areas such as yards, docks and campgrounds. For large indoor venues or spaces with high user density, a more targeted antenna setup may be a better fit.
Parameter
| Type | Fiberglass WiFi Antenna | Number Of Bands | 4G or customized |
| Terminals | N-female or customized | Model Number | FS-F1 |
| Place of Origin | Guangdong, China | Polaration | Vertical |
| Installation | Screw | Impedance | 50 |
| Max input power | 50 | Gain | 8DBI or customized |
| Color | silver | VSWR | less than 1.5 |
| Max power | 50W | Material | Fiberglass |
Application
Campgrounds and RV Parks-WiFi at campgrounds and RV parks often needs to reach more than just the main office. Guests may use their phones around their pitches, along internal roads or near shared facilities. A mast-mounted outdoor WiFi antenna can spread the signal around an open site, though larger parks may need several access points to cover areas beyond its reach. A fiberglass omni WiFi antenna is one option for installations exposed to changing weather.
Marinas and Dockside WiFi-At a marina, WiFi users may be spread along the docks and on boats moored on either side. A fiberglass WiFi antenna with an omnidirectional pattern can serve users around the access point, provided the antenna is mounted in a suitable position. Salt air and moisture can take their toll on exposed connectors and mounting hardware, so sealing and corrosion resistance are worth checking before installation.
Warehouse Yards and Logistics Areas-In warehouse yards and loading areas, staff may rely on handheld scanners and mobile terminals as they move between vehicles, loading bays and storage areas. Mounting an antenna on a pole can help extend WiFi around these open spaces, although buildings, parked vehicles and mounting height all affect coverage. Where the equipment is exposed to rain or regular wash-downs, an outdoor waterproof WiFi antenna may be worth considering.
Farms, Ranches and Poultry Houses-WiFi on a farm may need to reach beyond the main building to equipment sheds, storage areas or poultry houses. A fiberglass WiFi antenna mounted on a suitable roof or mast can help extend the signal across open areas. Before choosing a model, check that its frequency matches the access point and consider the distance between buildings, the mounting height and exposure to sun, wind and rain.
Construction Sites and Temporary Offices-WiFi arrangements on construction sites often change as work moves from one area to another. An antenna mounted on a suitable pole or temporary structure can help keep site offices and nearby work areas connected. A weather-resistant housing is useful outdoors, while a secure mount makes it easier to keep the antenna in place as site conditions change.
FAQ
Q1. Can one antenna support both 2.4 GHz and 5 GHz WiFi?
Yes. The dual-band version of this fiberglass WiFi antenna supports both 2.4 GHz and 5 GHz, so it can work with a compatible dual-band access point. The access point manages which band is used; the antenna itself does not switch between frequencies. Check the model’s frequency specifications before ordering, as not every version supports both bands.
Q2. Can I use this antenna with a 2×2 or 4×4 MIMO access point?
One antenna with a single N-type connector provides one RF connection. For 2×2 or 4×4 MIMO, the access point generally needs multiple antenna connections to support its radio chains. You may be able to use several single-port antennas, depending on the manufacturer’s recommendations, or choose a multi-port antenna instead. Check your access point’s requirements before selecting a configuration.
Q3. How far can an 8 dBi omnidirectional antenna reach?
There is no fixed range based on gain alone. Coverage also depends on transmit power, cable loss, mounting height, nearby buildings and other sources of interference. An outdoor WiFi antenna with an omnidirectional pattern spreads the signal around the mounting point, making it useful for open areas such as yards, docks and campgrounds. For a more realistic estimate, consider the access point, installation height and layout of the site together.
Q4. Is the antenna waterproof? What is its IP rating?
The fiberglass housing has sealed end and connector bases for outdoor installation. The actual level of protection against water and dust depends on the verified IP rating for the specific model. If you plan to install an outdoor waterproof WiFi antenna in an area exposed to heavy rain or regular wash-downs, confirm the IP rating before ordering.
