Product Overview

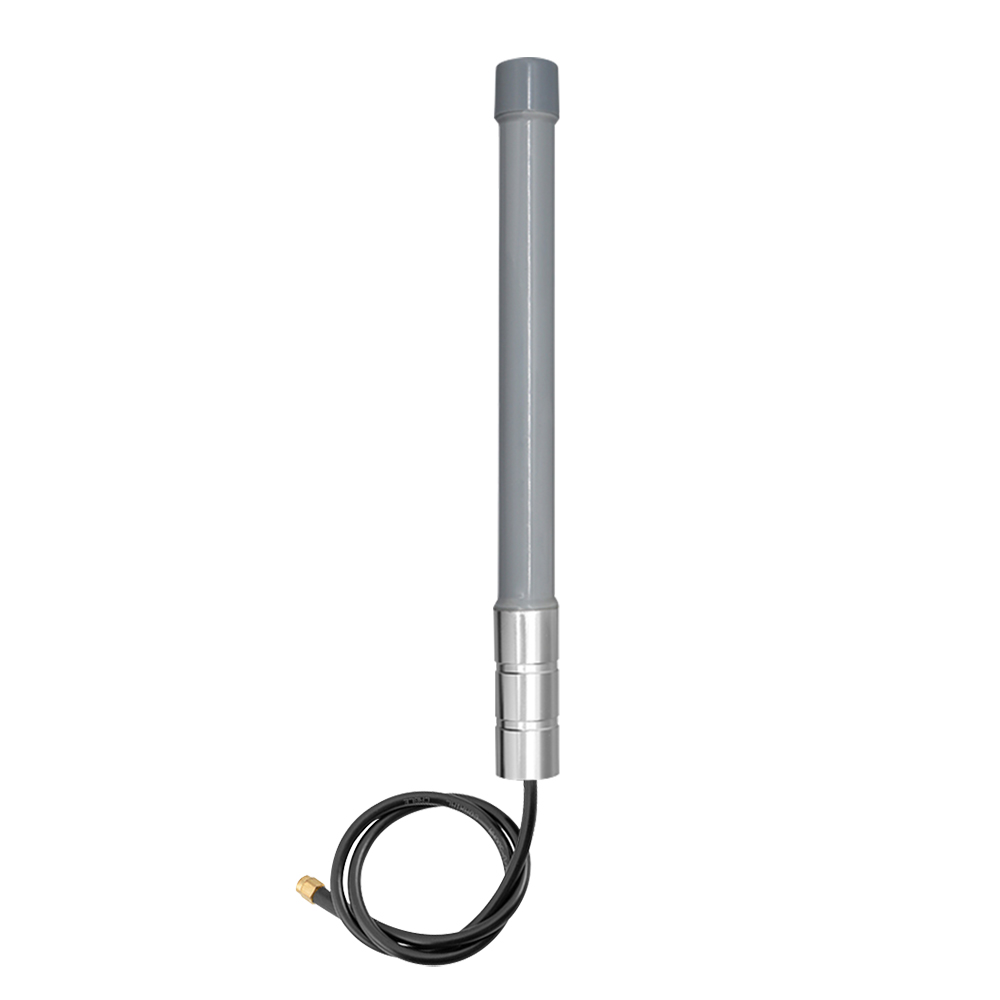

- Fiberglass Antenna for Outdoor Wireless Networks-The FS-F4 is a Fiberglass Antenna for outdoor wireless equipment, including gateways, utility cabinets and remote sensor stations. Its fiberglass radome covers the internal antenna element, making it a practical choice for equipment installed outside or away from a main facility. As an external antenna, it can be mounted separately from the device enclosure to suit different installation setups.
- Omni Directional Coverage for Easier Installation-With 360° horizontal coverage, the FS-F4 Omni Directional Antenna does not need to be pointed toward a specific gateway or base station. This makes installation more straightforward at sites where several antennas need to be fitted in different locations. It works well for fixed wireless equipment that needs coverage in multiple directions rather than a signal aimed at one particular point.

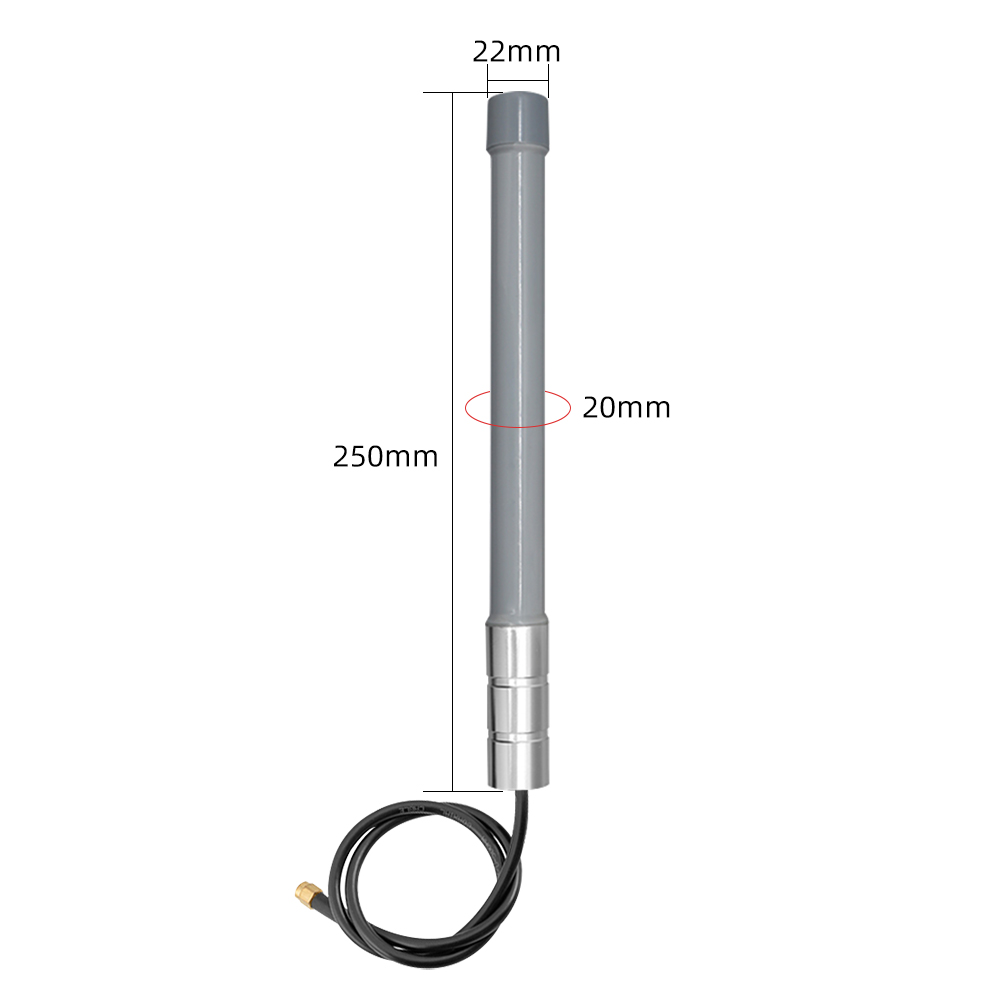

- Different Lengths and Gain Options-The FS-F4 comes in lengths of 25, 32, 45, 50 and 60 cm, with gain options ranging from 5 to 15 dBi. The right choice depends on the frequency band and the coverage required at the installation site. Options are available for selected 2.4 GHz, 3 GHz and 4G applications, with LoRa frequencies such as 433, 470, 868 and 915 MHz available for customized requirements.
- Fiberglass Housing for Outdoor Use-The fiberglass radome helps protect the antenna element in outdoor installations. This makes the FS-F4 worth considering for agricultural monitoring, industrial sites and remote wireless equipment that stays in place for long periods. If you need a Waterproof omnidirectional fiberglass antenna, please confirm the IP rating of the required configuration, including its cable and connector arrangement.
Parameter
| Type | FRP Antenna | Antenna Gain | 10 |
| Number Of Bands | 4G or customized | Terminals | N-female or customized |
| Model Number | FS-F4 | Place of Origin | Guangdong, China |
| Size | 25, 32, 45, 50, 60cm | VSWR | ≤1.9 |
| Frequency | 2.4g, 3g, 4g, or other customized | Color | White/Black/Grey |
| Nominal Impedance | 50ohm | Gain | 5-15dBi |

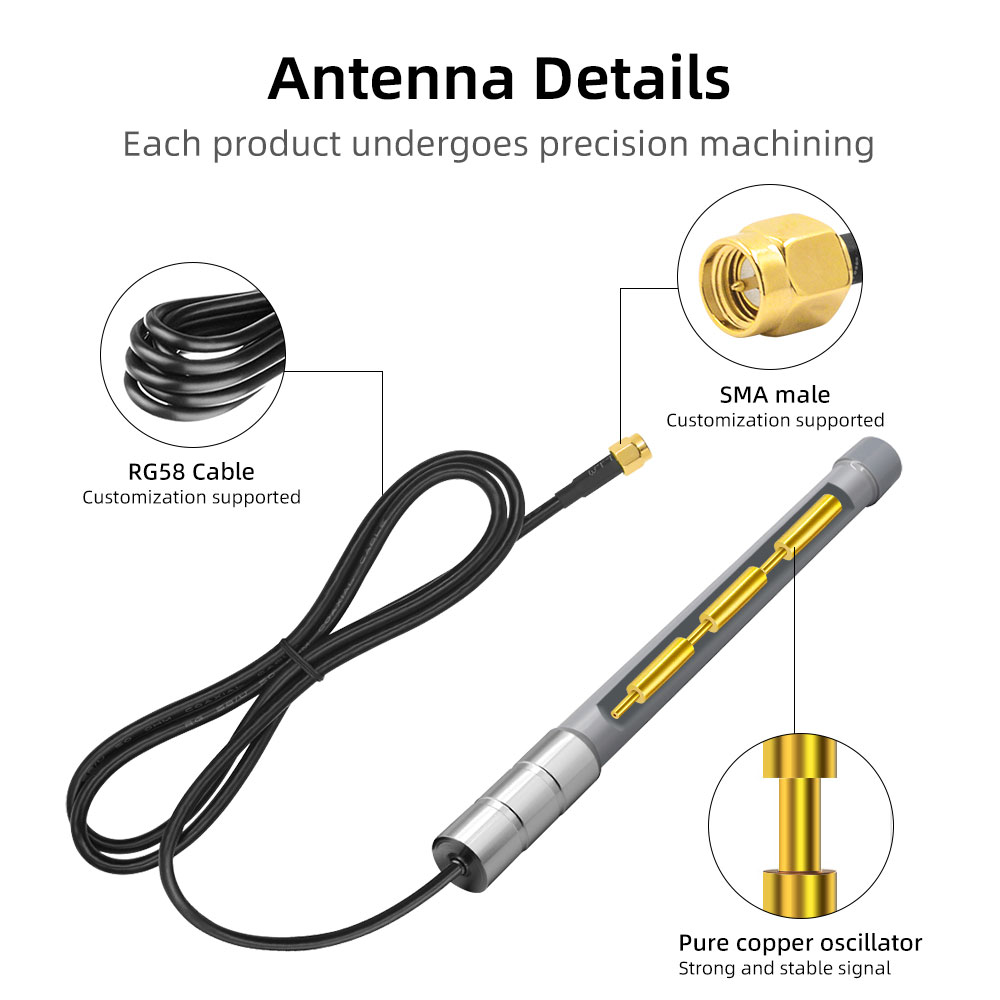

| Connector Type | N Male Connector or customized | Material | Fiberglass |
| Working environment | Large area without differential coverage | Type | FRP Antenna |
Application
Outdoor LoRa Antenna for LoRaWAN Gateways-LoRaWAN gateways are often installed on rooftops, poles or towers to connect sensors spread across a large area. With 360° horizontal coverage, the FS-F4 is a good option when nodes are located in different directions around the gateway. It fits applications such as smart metering, farm monitoring and environmental sensing, where a single gateway needs to communicate with multiple devices across a site.

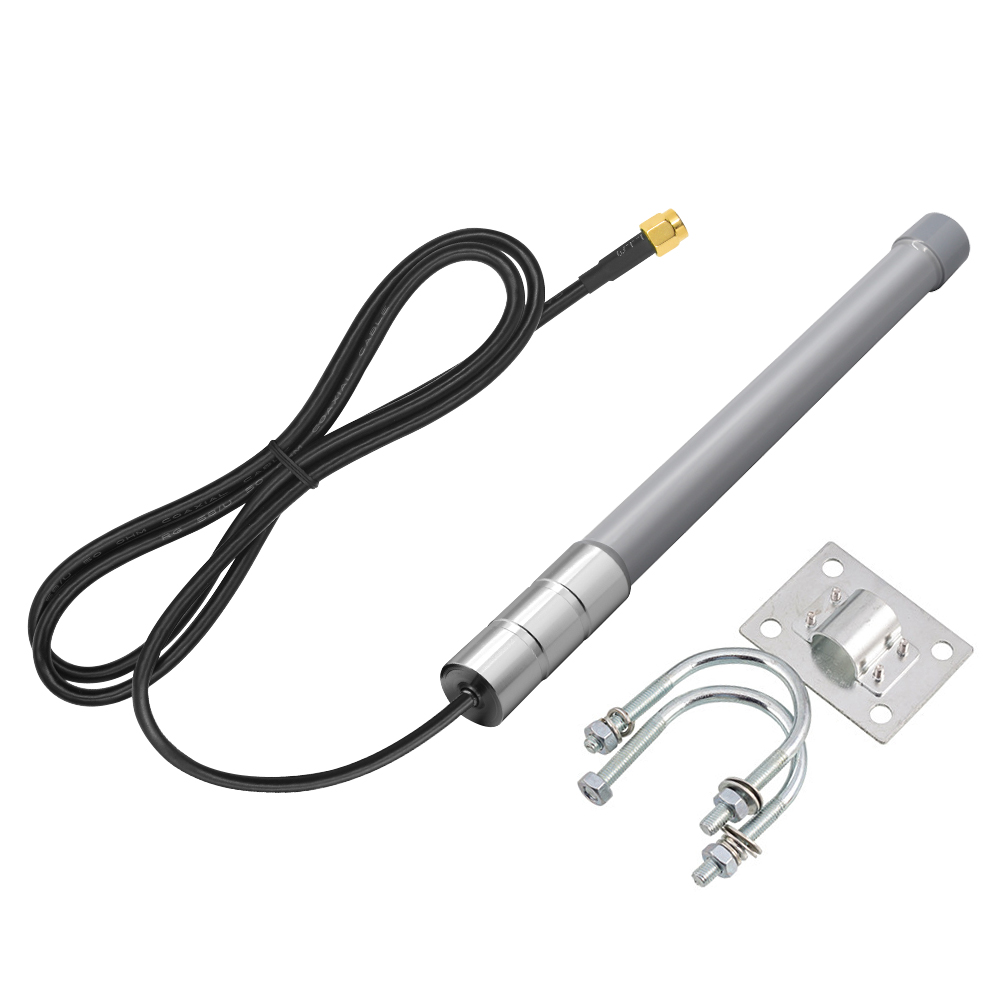

Fiberglass Antenna for LoRa Gateways and Hotspots-In some installations, placing the antenna outside the building can help reduce signal obstruction from walls, metal roofs and other structures. The FS-F4 can be mounted on a suitable pole or bracket, with the coaxial cable running back to the gateway or hotspot. The operating frequency and connector should be matched to the radio equipment before ordering.
External Antenna for 4G/LTE Routers and CPE-For remote locations, temporary sites or buildings with poor indoor reception, mounting an antenna outside the enclosure or at a higher point may help improve the connection. The FS-F4 can be configured for selected 4G/LTE bands, with cable length and connector options to suit the router or CPE. Checking the supported frequency bands and cable requirements in advance can make installation more straightforward.
Telemetry and Remote Monitoring Systems-Pumping stations, water facilities, substations and industrial sites often use RTUs and other remote monitoring equipment to send field data back to a control centre. Mounting the antenna outside the cabinet gives the radio equipment more flexibility in placement. For LoRa or cellular telemetry, the antenna frequency, gain and connector need to match the communication module.
Outdoor Use in Challenging Environments-Antennas installed in agricultural fields, coastal areas and industrial sites may face rain, temperature changes and prolonged exposure to the elements. The FS-F4 uses a fiberglass radome for outdoor installations, while the actual level of weather protection depends on the model’s specifications. If your project requires a waterproof omnidirectional fiberglass antenna, check the confirmed IP rating and make sure the cable entry and connector are properly sealed during installation.
FAQ
Q1. Will this fiberglass antenna work with my LoRa gateway or 4G router?
It depends on the frequency band your device uses. The FS-F4 can be configured for selected 2.4 GHz, 3G/4G and LoRa bands, including 433, 470, 868 and 915 MHz. The connector and cable length also need to suit your setup. Send us your device model, operating frequency and connector type, and we’ll help you check which configuration fits.
Q2. Is the FS-F4 suitable for outdoor installation?
The FS-F4 is intended for outdoor use at sites such as gateway installations, utility cabinets and remote monitoring stations. If you need a waterproof fiberglass antenna for long-term outdoor use, please confirm the IP rating of the specific model before ordering. The cable entry and connector joint should also be properly sealed, particularly where the antenna is exposed to heavy rain or moisture.
Q3. Which antenna length and gain should I choose?
The FS-F4 is available in lengths of 25, 32, 45, 50 and 60 cm, with gain options from 5 to 15 dBi. The right combination depends on your operating frequency, mounting space and coverage requirements. Higher gain isn’t necessarily better for every installation, so tell us a little about your application and we can help you choose a suitable option.
Q4. Can I order samples or customize the antenna for my project?
Yes, sample orders can be discussed before you place a bulk order. Depending on your requirements, we can discuss customization of the frequency, gain, antenna length, cable type and length, connector, housing colour and packaging. For a quotation, simply share your specifications, estimated order quantity and delivery country. We’ll confirm sample availability, MOQ, pricing and lead time based on your requirements.
