4G Magnetic Antenna | Omni Antenna
- Connectors and length customization
- Frequency band customization
- Regarding size customization
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
Share to:
Product Overview
- Wideband 4G/LTE Coverage – This magnetic antenna covers 800–2700 MHz and is suitable for a variety of 4G/LTE equipment. It provides 3–5 dBi gain, vertical polarization, 50 Ω impedance, and VSWR below 1.5, covering a wide range of commonly used cellular frequency bands.
- Magnetic Mounting for Flexible Installation – The magnetic base can be attached directly to a suitable metal surface, so there is no need to drill a mounting hole in the equipment. As an omni antenna, it provides 360° coverage and can be positioned according to the available installation space.

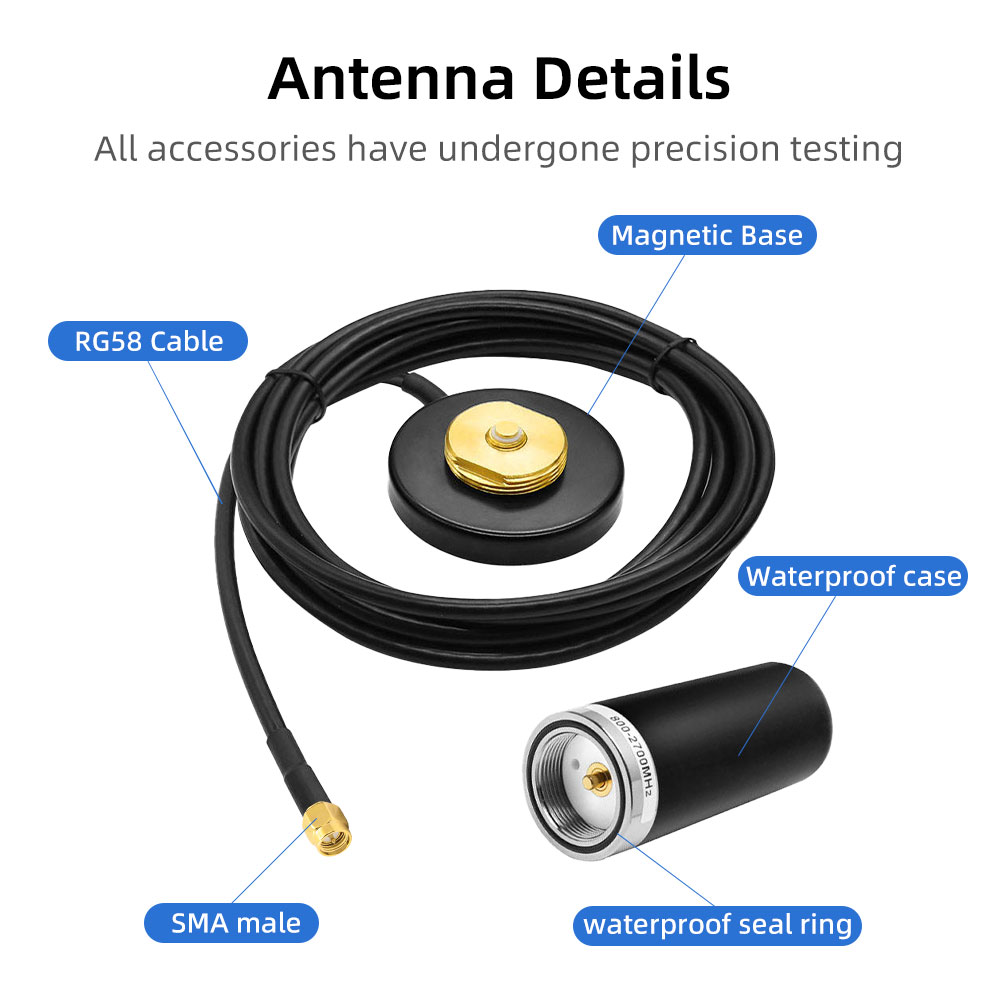

- RG58 Cable with SMA Male Connector – The standard configuration shown uses an RG58 RF cable with an SMA male connector. Cable length and connector type can be customized to suit different equipment and connection requirements, especially when the antenna needs to be placed some distance from the wireless module.
- Suitable for IoT and Wireless Equipment – This 4G magnetic antenna is suitable for DTUs, IoT cabinets, smart gateways, charging stations, and other wireless equipment using 4G/LTE connectivity. The magnetic base is a practical choice when the antenna needs to be mounted outside the equipment or on a nearby metal surface.
- Configurable for Different Projects – Frequency, cable length, and connector options can be customized according to the equipment and application requirements. For antenna applications that require an external antenna with wide 4G coverage and flexible mounting, the configuration can be adjusted to match the wireless module and installation setup.
Parameter
| Type | 4G Magnetic Antenna | Antenna Gain | 3-5 DBI |
| Terminals | support customized | Installation | can be customized |
| Connector Type | can be customized | Model Number | FS-C10 |
| Brand Name | support OEM | Place of Origin | Guangdong, China |
| Polarization | vertical | Antenna Frequency | 4G or customized |
| Model Number | FS-C10 | DBI | 3-5 DBI |
| Frequency | can be customized | VSWR | less than 1.5 |
| Installation | screw | Connector | Can be customized |
| Supply Voltage | 2.8- 5.0V | Input Impedance | 50 |
Application
IoT Gateways & Wireless Terminals-Used with IoT gateways, DTUs, wireless terminals, and other 4G/LTE equipment where the antenna needs to sit outside the device. The magnetic antenna can be placed on a suitable metal surface, with the RF cable connected to the wireless module inside the equipment.
Industrial Equipment & Control Systems-Suitable for industrial equipment, control cabinets, automation systems, and other fixed devices that use cellular communication. The magnetic base avoids the need for a dedicated mounting hole, which can be useful when working with existing equipment housings or limited installation space.
Remote Monitoring & Telemetry-Commonly used for remote monitoring terminals, telemetry equipment, and wireless data collection devices that send information over a 4G/LTE connection. With 800–2700 MHz coverage, the 4G magnetic antenna can be used across a range of cellular applications and mounted outside the equipment enclosure.
Fleet & Vehicle Communication-Designed for vehicle communication equipment, fleet management devices, and other mobile systems that rely on cellular connectivity for data transmission. The magnetic base can be attached to a suitable metal surface without permanent mounting. For an SMA 4G antenna configuration, the connector and cable length can also be matched to the equipment.
Smart Energy & Connected Equipment-Suitable for charging equipment, smart energy devices, connected cabinets, and other systems that use cellular communication for data exchange and remote access. The external antenna can be supplied with different cable lengths and connector options to suit the equipment layout and installation requirements across different antenna applications.
