4‑in‑1 Puck Cabinet Antenna | IoT Antenna
- Connectors and length customization
- Frequency band customization
- Regarding size customization
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
Share to:
Product Overview

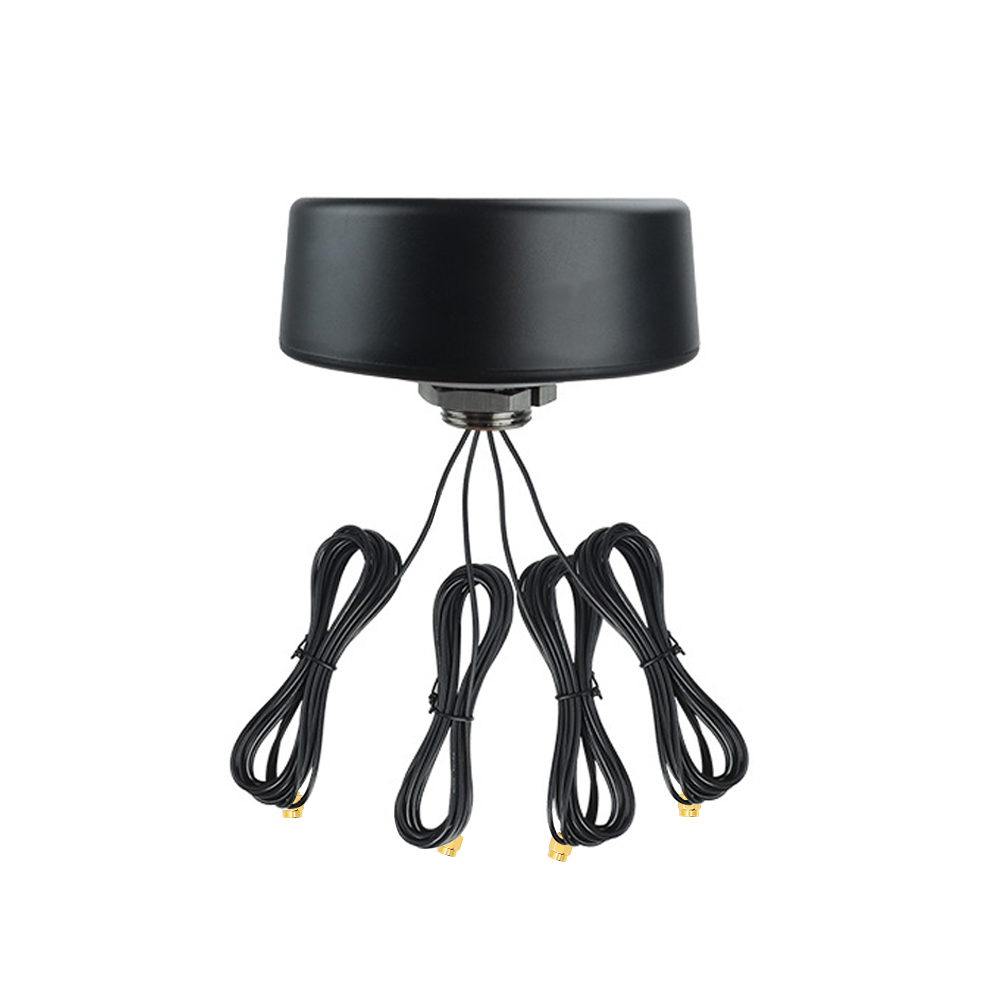

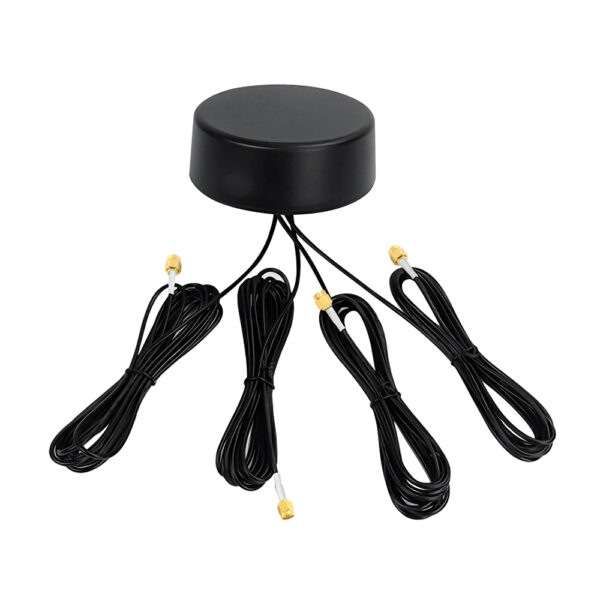

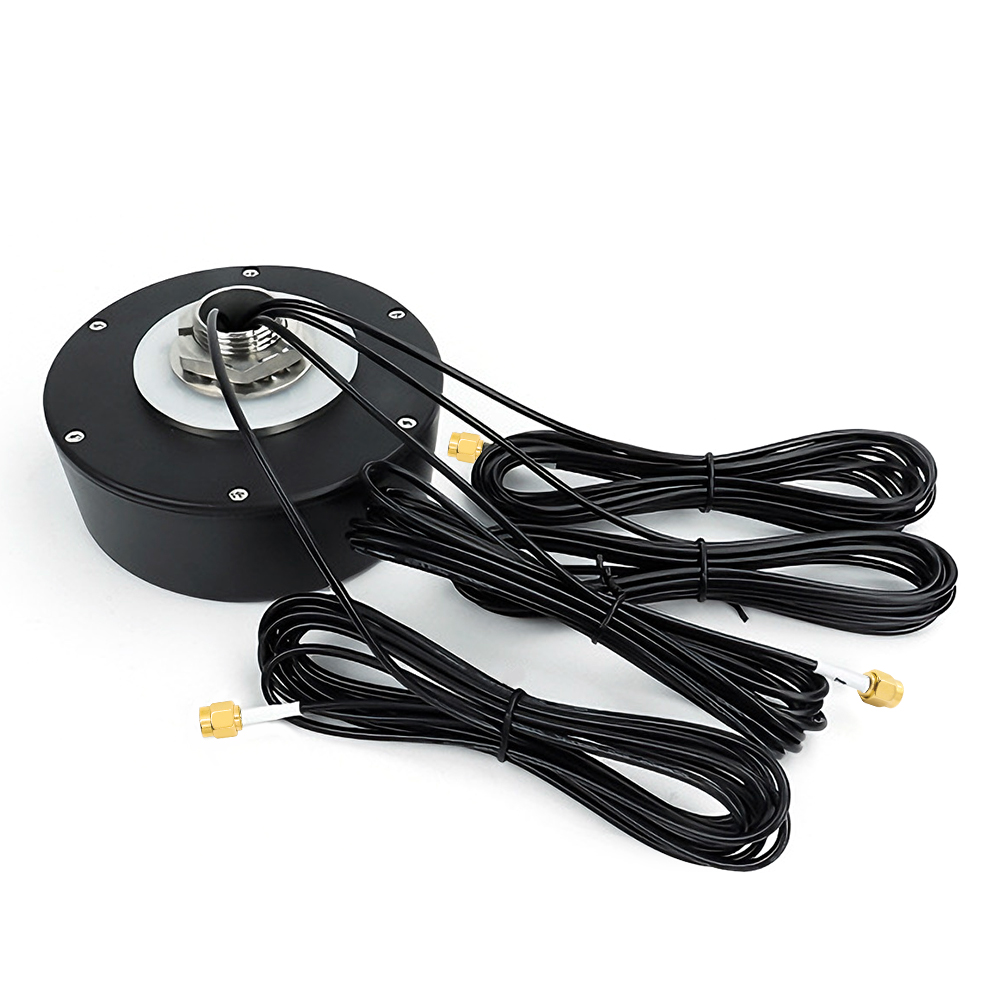

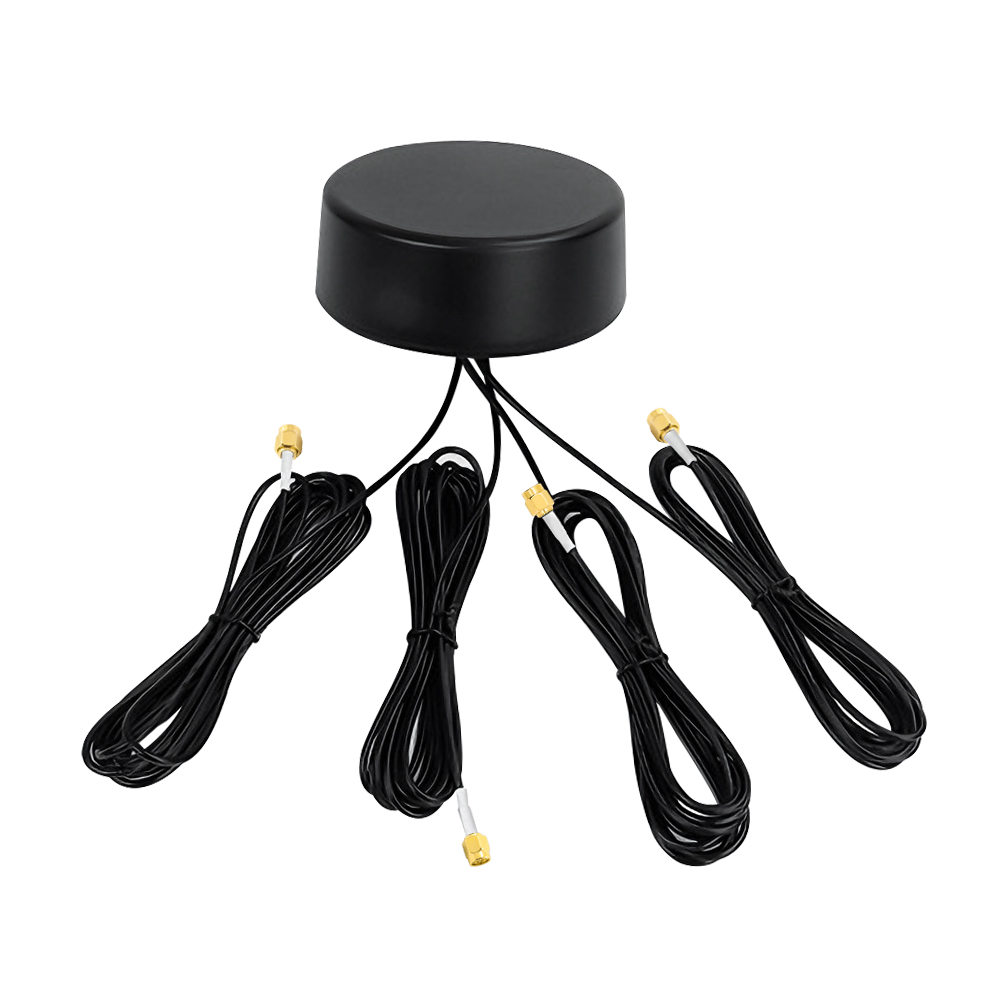

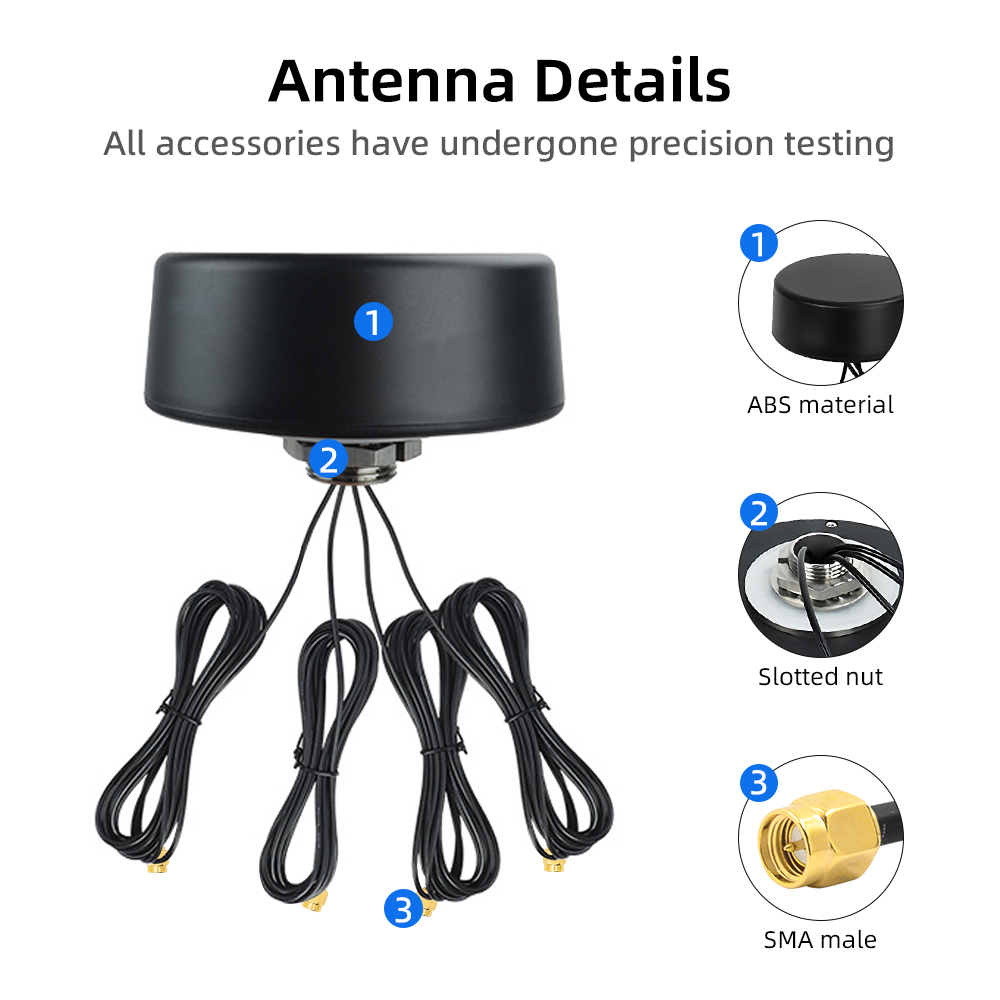

Compact Puck Housing for Cabinet Installation – The compact puck-style housing uses ABS material and has an IP67 rating for protection against dust and water. It can be fixed to the outside of a cabinet or equipment enclosure with the threaded mounting base, while the four RF cables run inside to the relevant modules.
Four Wireless Connections in One Housing – This 4-in-1 design brings together two LTE connections, GPS, and WiFi in one antenna. It works well for equipment that needs several wireless functions in the same system, including IoT gateways, smart cabinets, and connected devices. The frequency bands can be customized to match the requirements of the project.

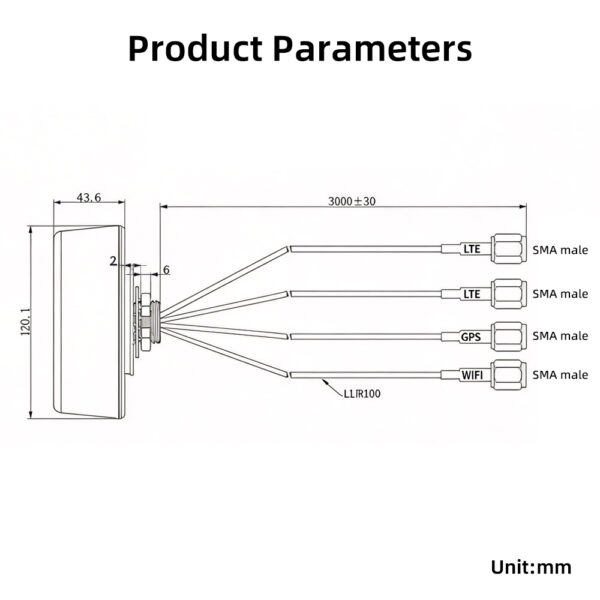

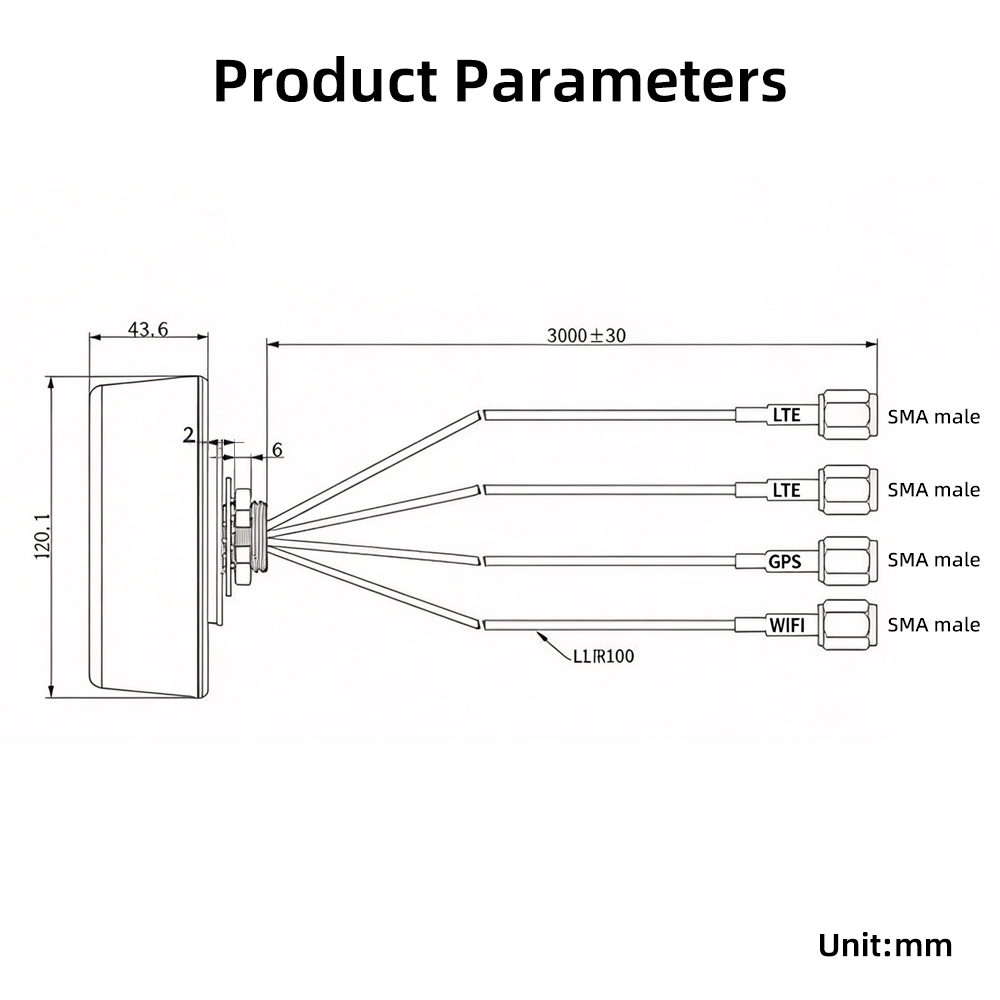

SMA Male Connectors and Custom Cable Lengths – The configuration shown comes with four SMA male connectors, with separate cables for LTE, LTE, GPS, and WiFi. The standard cable shown is LMR100, with a length of 3000±30 mm. If your equipment uses a different cable length or connector, these can be customized for the installation.
For IoT Gateways and Connected Equipment – This IoT Antenna is designed for equipment that brings cellular, positioning, and WiFi connectivity together in one enclosure. Common antenna applications include IoT gateways, smart cabinets, vehicle IoT equipment, EV charging equipment, and other connected systems. As an external antenna, it keeps the antenna outside the enclosure while the four connections are routed inside to the equipment modules.
Parameter
| Type | 4‑in‑1 Puck Cabinet Antenna | Antenna Gain | 8~30DBI |
| Number Of Bands | can be customized | Terminals | support customized |
| Installation | Adhesive+Screw | Connector Type | Male |
| Model Number | FS-ZH-14 | Brand Name | Feisheng or or customized |
| Place of Origin | Guangdong, China | Ingress Protection | IP67 |
| Maximum input power | 10W | Antenna Frequency Band | LTE+LTE+GPS+WIFI |
| DBI | 8~30DBI | Input impedance | 50Ω |
| VSWR | less than 1.5 | Applications | Widely used everywhere |
| Connector | customized | Polarization | Vertical |
Application
Fleet & Vehicle Connectivity-Used in connected vehicles, fleet tracking equipment, and telematics systems that need cellular, GPS, and WiFi connectivity in one device. The four-in-one design brings the different RF connections into a single housing, making it easier to keep the antenna installation neat on vehicle-mounted equipment.
IoT Gateways & Smart Terminals-Suitable for IoT gateways, edge devices, and smart terminals that combine several wireless functions. The separate LTE, GPS, and WiFi connections can be connected to the corresponding modules inside the equipment, while the antenna housing stays mounted outside.
Tracking & Remote Monitoring-A practical choice for asset tracking devices, monitoring terminals, and remote data collection equipment that need both positioning and wireless communication. The compact puck-style housing is also useful when installation space is limited and the antenna needs to be mounted on the outside of the equipment.
EV Charging & Smart Energy-Used with EV charging stations, smart energy equipment, and other connected electrical systems that rely on cellular or WiFi communication. When GPS is part of the system, it can be handled through the same antenna housing. The Cabinet Antenna mounts on the equipment enclosure, with the RF cables running inside to the corresponding modules.
Industrial IoT & Connected Equipment-Suitable for industrial gateways, smart cabinets, control equipment, and other connected systems that use multiple wireless technologies. The IP67-rated housing and external mounting design make this IoT Antenna a good option for equipment installed outdoors or in environments where protection from dust and water is needed.
FAQ
Q1. What does the 4-in-1 Cabinet Antenna include?
It combines two LTE connections, GPS, and WiFi in one housing, with four separate RF cables for the corresponding modules inside the equipment. This setup is useful for IoT gateways, smart cabinets, and other devices that need several wireless connections in one enclosure.
Q2. What connectors and cable lengths are available?
The configuration shown comes with four SMA male connectors, with separate cables for LTE, LTE, GPS, and WiFi. The cable shown is LMR100 and is 3000±30 mm long. Different connector types and cable lengths can also be discussed if they better suit your equipment.
Q3. What are the antenna dimensions and mounting requirements?

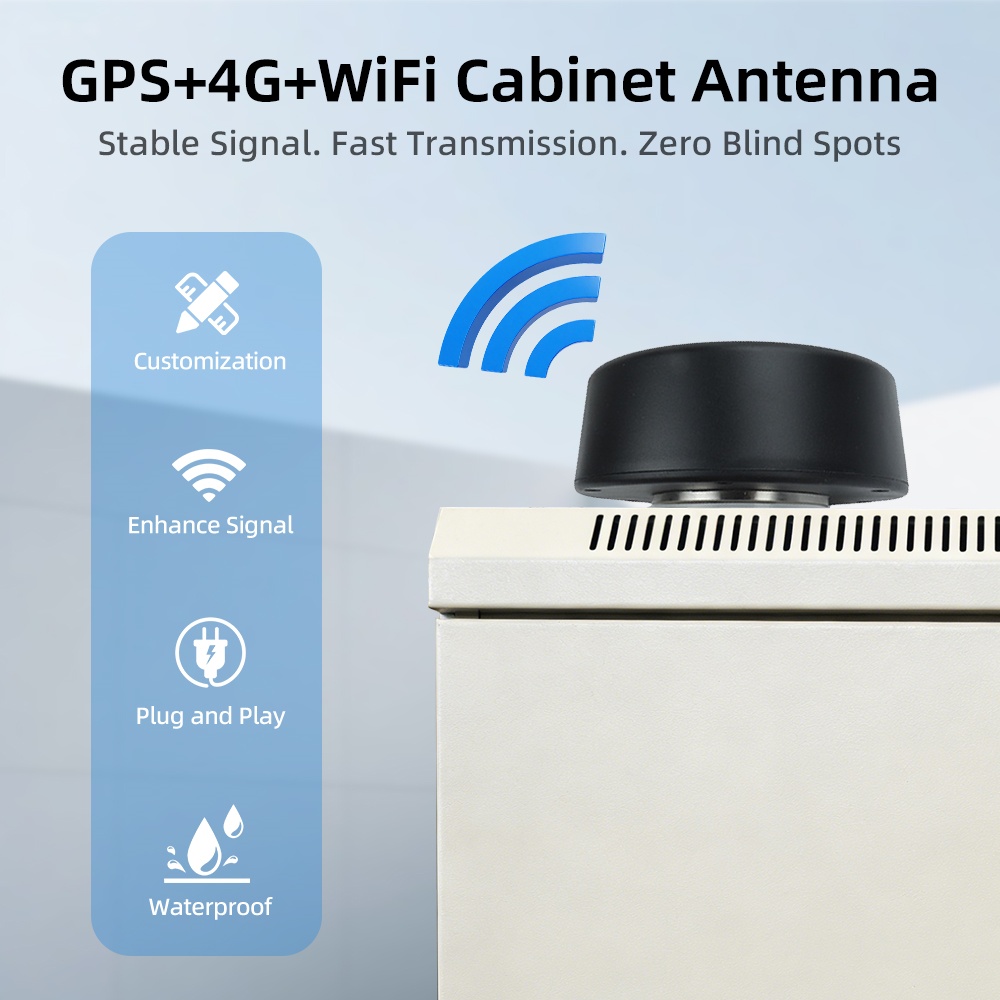

The antenna measures approximately 120.1 mm in diameter and 43.6 mm in height. It uses a threaded mounting structure and is installed through the equipment panel or enclosure, with the four RF cables routed inside to the wireless modules. It is worth checking the available panel space and mounting hole before installation.
Q4. Is this antenna suitable for outdoor equipment?
Yes. The ABS housing is IP67 rated, providing protection against dust and water. It can be used on suitable outdoor or exposed equipment, including IoT gateways, smart cabinets, vehicle IoT equipment, and EV charging systems. As an external antenna, it can be mounted outside the enclosure while the four RF connections run inside to the equipment.
