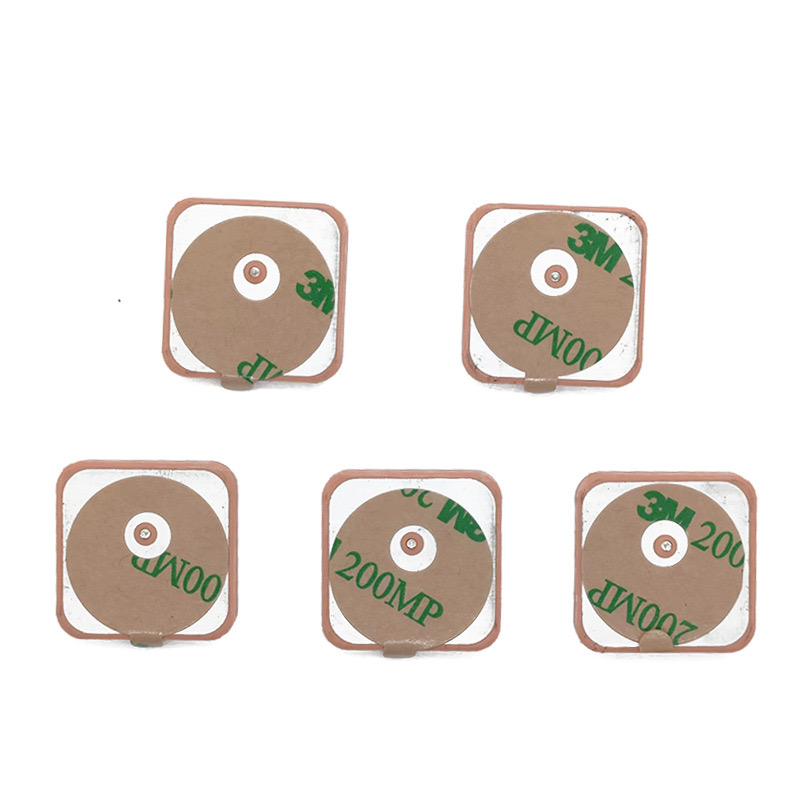

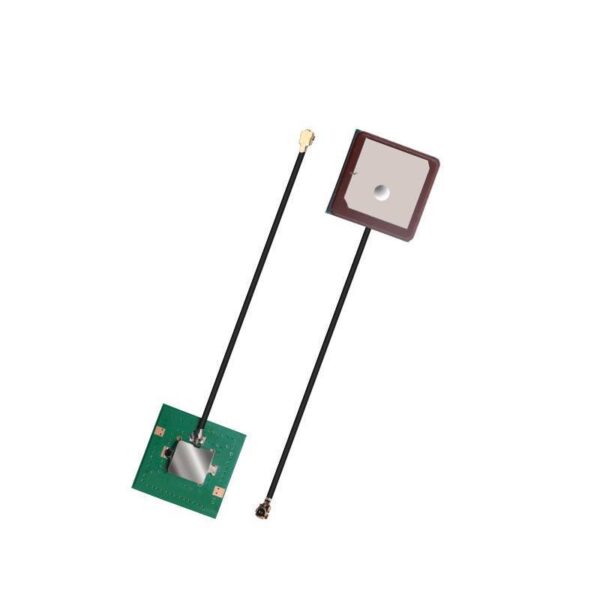

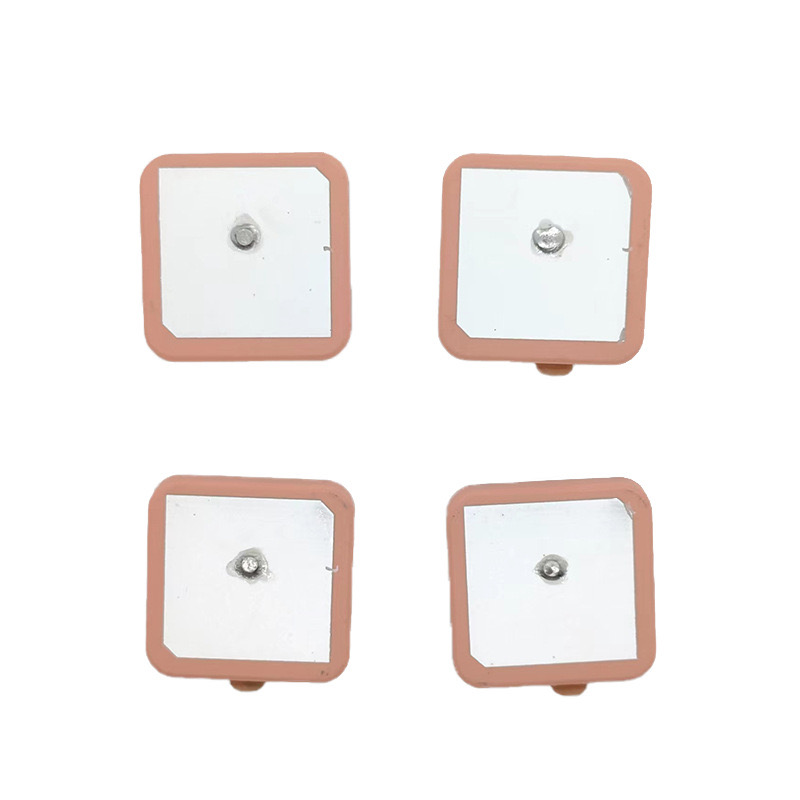

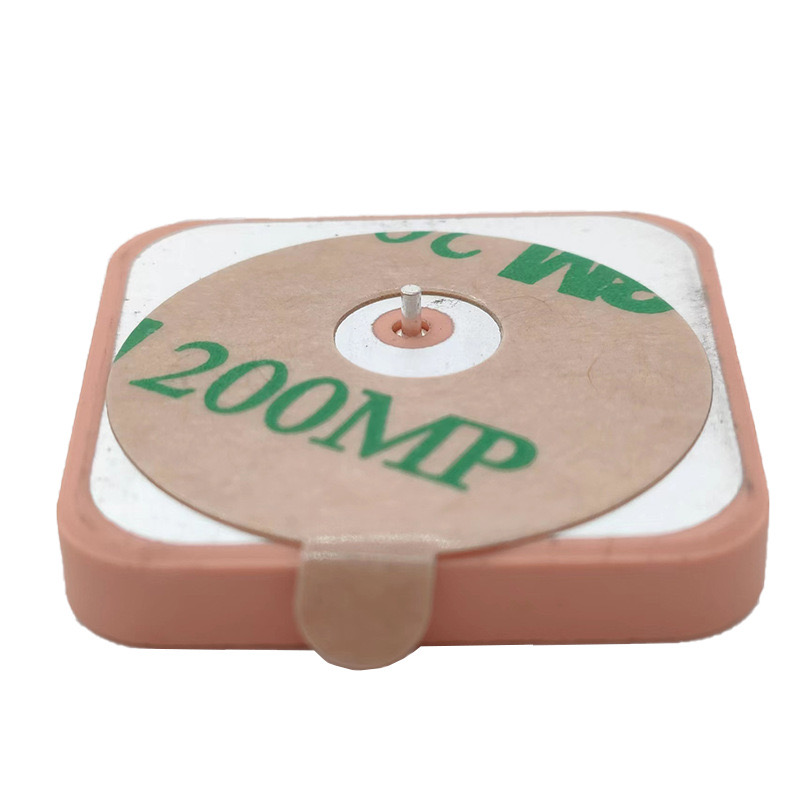

Ceramic Antenna Product Introduction
Our ceramic antennas are high-precision miniature SMD built-in antennas, mainly including GNSS positioning ceramic antennas and communication ceramic antennas. Covering GPS, BeiDou, GLONASS, 2.4G WiFi and Bluetooth frequency bands, they are widely used for signal receiving and positioning of compact smart electronic devices.
Share to:
Product Overview
Made of high-density ceramic dielectric material, these antennas feature small size, ultra-thin thickness and stable performance. With accurate internal circuit etching design, they achieve low VSWR, high gain and high radiation efficiency. Built-in LNA active amplification option is available to effectively enhance satellite signal reception and improve positioning accuracy in weak signal environments.
Featuring excellent anti-interference ability and temperature stability, the antennas support SMT automatic patch mounting for mass production. Passive and active types are optional with customizable specifications. They are ideal for IoT modules, wearable devices, drones, vehicle terminals, smart instruments and portable positioning devices.
Parameter
| Item | Specification |
|---|---|
| Frequency Range | 1575.42 MHz (GPS L1), 1561 MHz (Beidou B1) |
| Antenna Gain | 2–3 dBi (Ceramic Patch); Active LNA Gain: 26–28 dB |
| Polarization | Right-Hand Circular Polarization (RHCP) |
| Nominal Impedance | 50 Ω |
| Radiation Pattern | Hemispherical upward coverage |
| Connector Type | U.FL / I-PEX |
| VSWR | ≤1.5 |
| Power Supply | 2.7–5V DC (for active version only) |
| Mounting | Embedded internal installation |
